TPA3110D2PWP
| Manufacturer | |
| Description | Audio Amp Speaker 2-CH Stereo 15W Class-D 28-Pin HTSSOP EP Tube IC AMP AUD PWR 15W STER 28HTSSOP Audio Amplifiers 15W Class D Stereo Amplifier IC, AMP AUD PWR 15W STER 28HTSSOP 15W Filter-Free Class D Stereo Amplifier with SpeakerGuard™ (TPA3110) Texas Instruments D 类 立体声 音频放大器 IC, +85 °C, 28引脚 HTSSOP封装 |
| Category |
Business
| Product | Class-D | Other Names | 296-24968-5 |
| Product Category | Audio Amplifiers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423300 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Gain | 36 dB | Noise | 0.1@8Ohm@7.5W % |
| Impedance | :4ohm | Input Type | Analog |
| Output Type | 2-Channel Stereo | Input Signal | Differential |
| Output Power | 15 W | Feedback Type | Closed |
| Output Signal | Differential | Power - Input | Single |
| Power - Rated | 4.48 W | Power - Output | :15W |
| Current - Output | 32 mA | Voltage - Supply | 8 V |
| Distortion Rating | 0.1 | Power Supply Type | Single |
| Number of Channels | :2 | Current Rating (Max) | Catalog |
| Rail-to-Rail Operation | No | Power Dissipation (Max) | 4480 mW |
| Voltage - Supply, Analog | 8 | Voltage - Supply Span (Typ) | Not Required V |
| Max Output Power x Channels @ Load | 15W x 2 @ 8 Ohm | Voltage - Output Difference (Typ) @ Distance | 36 dB |
Mechanical
| Width | 4.5(Max) | Weight | 0.0002 |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :28 |
| Package / Case | 28HTSSOP EP | Package Cooled | HTSSOP EP |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 9.8(Max) |
| Package Quantity | HTSSOP EP | Number of Positions | 28 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 28-HTSSOP |
| Load Side Wire/Stud Size | 8 Ohms | ||
Product Info
| Type | Class D | Series | TPA3110D2 |
| Features | Differential Inputs, Short-Circuit and Thermal Protection, Shutdown | Function | Speaker |
| Software | SLOS528D | Base Unit | :3110 |
| Architecture | Class D | Amplifier Type | Class-D |
| Control Method | Hardware | Pattern Number | Y |
| Functional Diagram | alt_slos528d.gif | Utilized IC / Part | View |
| Output Configuration | 2-Channel Stereo | Printed Circuit Board | 28 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
Documents & Media
Similar Parts
PGA4311UA
texas instruments
Audio Volume Control 28-Pin SOIC Tube IC VOLUME CTRL AUD 4-CH 28 SOIC Audio Amplifiers 4-Ch +/-5V Audio Volume Control 4-Channel, +/-5V Audio Volume Control
UA78M33CKCS
texas instruments
Standard Regulator Pos 3.3V 0.5A 3-Pin(3+Tab) TO-220 Tube IC REG LDO 3.3V 0.5A TO220-3 UA78M33CKCS, Linear Voltage Regulator, 0.5A 3.3V, 3-Pin TO-220 Voltage Regulators - Standard 3.3 V 500mA Fix Pos Voltage Regulator IC, LINEAR VOLT REGULATOR, 3.3V, TO-220 3/4 Pin 500mA Fixed 3.3V Positive Voltage Regulator Texas Instruments UA78Mxx 系列 线性稳压器, 3.3 V /500mA, 3针 TO-220 Linear Voltage Regulators 3.3 V 500mA Fix Pos Voltage Regulator
SN74LVC1GU04DBVT
texas instruments
Inverter 1-Element CMOS 5-Pin SOT-23 T/R IC SINGLE INVERTER GATE SOT23-5 Inverters SINGLE INVERTER GATE LOGIC, SINGLE INVERTER GATE, 5SOT23 Single Inverter Gate CMOS 反相器, CMOS 1.65 → 5.5 V, 5针 SOT-23封装
SN74LVC2G53DCUT
texas instruments
DUAL ANALOG MULTIPLEXER/DEMULTIPLEXER Analog Switch Single SPDT 8-Pin VSSOP T/R Analog Switch ICs SNLG Pole Double Throw Analog Switch Analog Multiplexer Single 2:1 8-Pin VSSOP T/R IC SWITCH SPDT US8 SN74LVC2G53DCUT, Analogue SPDT Switch Single SPDT, 3, 5V, 8-Pin, VSSOP LOGIC, SPDT MUX/DEMUX 2:1 8US8, RL250 Single Pole, Double-Throw (SPDT) Analog Switch or 2:1 Analog Multiplexer/Demultiplexer

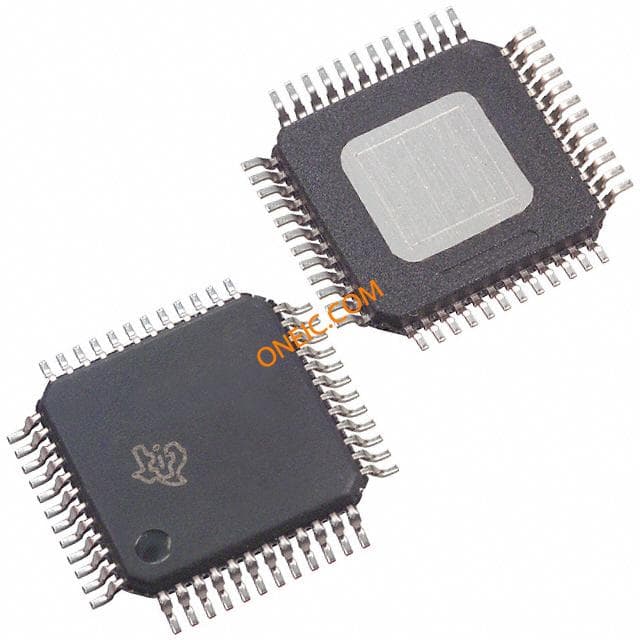

TAS5709PHP
