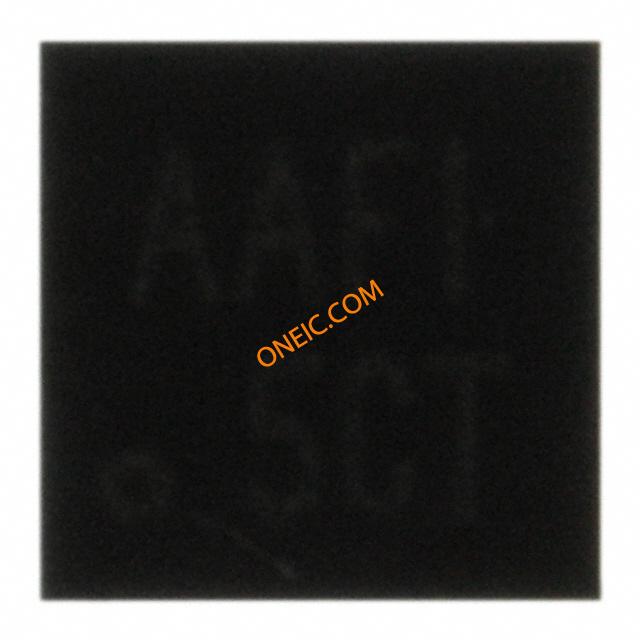

TPA2005D1ZQYR
| Manufacturer | |
| Description | Audio Amp Speaker 1-CH Mono 1.45W Class-D 15-Pin BGA MICROSTAR JUNIOR T/R IC AMP AUDIO PWR 1.45W D 15BGA Audio Amplifiers Mono Fully Diff Filter-Free Class-D 1.4-W Mono Class-D Audio Amplifier (TPA2005) |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Class-D | Other Names | 296-18921-2 |
| Product Category | Audio Amplifiers | Standard Package | Tape & Reel |
| Factory Pack Quantity | 2500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| PSRR | 75 dB | Noise | 0.18@8Ohm@1W % |
| Channels | Mono | Impedance | 8 Ohms |
| Input Type | Differential | Output Type | 1-Channel Mono |
| Input Signal | Differential | Output Power | 1.45 W |
| Output Signal | Differential | Power - Input | Single |
| Power - Rated | 2 W | CMRR, PSRR (Typ) | 68 dB |
| Current - Output | 2.8 mA | Current - Supply | 2.8 mA |
| Voltage - Supply | 2.5 V | Distortion Rating | 0.18 |
| Number of Channels | 1 Channel | Current Rating (Max) | Catalog |
| Power - Average Forward | 2000 mW | Power Dissipation (Max) | 2000 mW |
| Voltage - Supply Span (Typ) | Not Required V | Max Output Power x Channels @ Load | 1.45W x 1 @ 8 Ohm |
Mechanical
| Height | 0.79 mm | Length | 2.5 mm |
| Weight | 0.000416 oz | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 15BGA MICROSTAR JUNIOR | Package Cooled | BGA MICROSTAR JUNIOR |
| Package Quantity | 2500 | LARGE T&R | Number of Positions | 15 |
| Supplier Device Package | 15-BGA MICROSTAR JUNIOR (2.5x2.5) | Load Side Wire/Stud Size | 8 Ohms |
Product Info
| Type | Class D | Class | Class-D |
| Series | TPA2005D1 | Features | Differential Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Function | Speaker | Software | SLOS369F |
| Manufacturer | Texas Instruments | Amplifier Type | Class-D |
| Development Kit | TPA2005D1EVM | Utilized IC / Part | View |
| Output Configuration | 1-Channel Mono | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
Documents & Media
PDF Document
