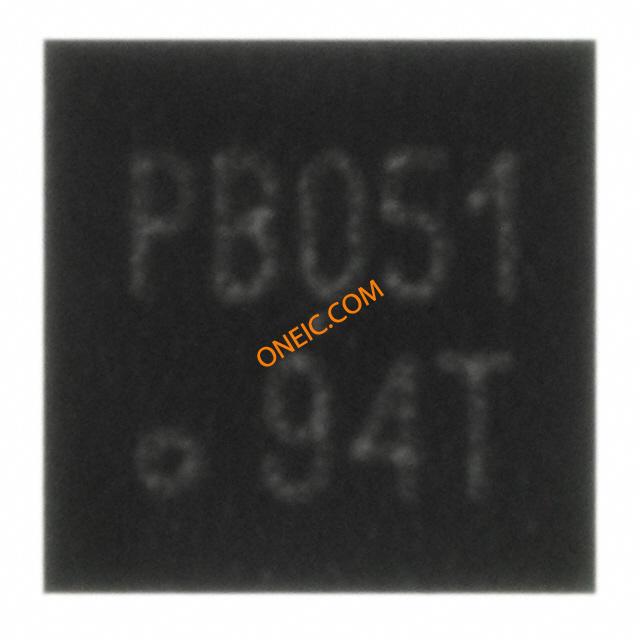

TPA2005D1GQYR
| Manufacturer | |
| Description | Audio Amp Speaker 1-CH Mono 1.45W Class-D 15-Pin BGA MICROSTAR JUNIOR T/R IC AMP AUDIO PWR 1.45W D 15BGA Audio Amplifiers Mono Fully Diff Filter-Free Class-D 1.4-W Mono Class-D Audio Amplifier (TPA2005) |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Class-D | Other Names | 296-15073-2 |
| Product Category | Audio Amplifiers | Standard Package | Tape & Reel |
| Factory Pack Quantity | 2500 | Standard Package Name | BGA |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Part Status | ACTIVE |
Electrical
| PSRR | 75 dB | Noise | 0.18@8Ohm@1W % |
| Channels | Mono | Impedance | 8 Ohms |
| Input Type | Differential | Output Type | 1-Channel Mono |
| Input Signal | Differential | Output Power | 1.45 W |
| Output Signal | Differential | CMRR, PSRR (Typ) | 68 dB |
| Current - Output | 2.8 mA | Current - Supply | 2.8 mA |
| Voltage - Supply | 2.5 V | Power Supply Type | Single |
| Number of Channels | 1 Channel | Current Rating (Max) | Catalog |
| Rail-to-Rail Operation | No | Power - Average Forward | 2000 mW |
| Power Dissipation (Max) | 2000 mW | Max Output Power x Channels @ Load | 1.45W x 1 @ 8 Ohm |
Mechanical
| Width | 2.5 | Height | 0.79 mm |
| Length | 2.5 mm | Weight | 0.000427 oz |
| Packaging | Tape and Reel | Lead Style | Ball |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 15BGA MICROSTAR JUNIOR | Length - Overall | 2.5 |
| Package Quantity | BGA MICROSTAR JUNIOR | Number of Positions | 15 |
| Shell Size - Insert | 0.79 | Supplier Device Package | 15-BGA MICROSTAR JUNIOR (2.5x2.5) |
| Load Side Wire/Stud Size | 8 Ohms | ||
Product Info
| Type | Class D | Class | Class-D |
| Series | TPA2005D1 | Features | Differential Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Function | Speaker | Software | SLOS369F |
| Manufacturer | Texas Instruments | Amplifier Type | Class-D |
| Development Kit | TPA2005D1EVM | Utilized IC / Part | View |
| Printed Circuit Board | 15 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
Documents & Media
PDF Document
