TMS320VC33PGEA120
| Manufacturer | |
| Description | DSP Floating-Point 32-Bit 120MHz 60MIPS 144-Pin LQFP Digital Signal Processors & Controllers - DSP, DSC Digital Signal Proc IC DGTL SIGNAL PROCESSOR 144LQFP |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | DSPs | Tradename | C5000 |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC | Standard Package | Trays |
| Factory Pack Quantity | 60 | Standard Package Name | QFP |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Speed | 120 MHz | RAM Size | 136 KB |
| Core Size | 32 b | Core Type | TMS320 |
| Interface | Serial Port | Clock Rate | 60 MIPS |
| Memory Size | 136 KB | Voltage - I/O | 3.30V |
| Voltage - Core | 1.80V | Voltage Rating | 1.71|3 |
| Clock Frequency | 120 MHz | Voltage - Supply | 1.8|3.3 V |
| Non-Volatile Memory | External | Program Memory Size | Not Required kB |
| Program Memory Type | ROMLess | Voltage - Supply (Min) | 1.71/3 V |
| Frequency (Center/Band) | 60MHz | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 20.2(Max) | Weight | 0.045518 oz |
| Packaging | Tray | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 144LQFP | Package Cooled | LQFP |
| Connector Usage | Serial Port | Length - Overall | 20.2(Max) |
| Package Quantity | LQFP | Number of Positions | 144 |
| Shell Size - Insert | 1.45(Max) | Supplier Device Package | 144-LQFP (20x20) |
| Number of Cores/Bus Width | 32 Bit | ||
Product Info
| Type | Floating Point | Format | Floating Point |
| Series | TMS320C3x | On-Chip RAM | 136.25kB |
| Architecture | Enhanced Harvard | Manufacturer | Texas Instruments |
| Programmable | No | Number Format | Floating-Point |
| Development Kit | TMDSDSK33 | Instruction Type | Floating Point |
| Other Specifications | 60 | Printed Circuit Board | 144 |
Environmental
| Mechanical Life | NRND: Not recommended for new designs. | Operating Temperature | + 100 C |
| Operating Temperature - Junction | 100C | ||
Documents & Media
Similar Parts

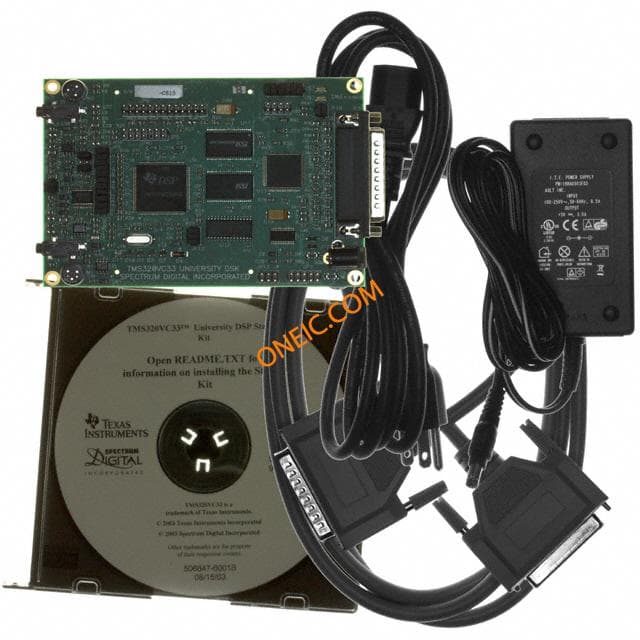

TMDSDSK33-0E
Texas Instruments
Development Boards & Kits - TMS320 TMS320VC33 Univ DSK w/ EU Power Cord KIT STARTER TMS320VC33 W/EU CORD TMS320VC33, AUDIO, EU CORD, DEV KIT
$1014.7200
Details
TMDSDSK33
texas instruments
Digital Signal Processors Development Boards & Kits - TMS320 VC33 University DSK DSP STARTER KIT FOR TMS320VC33
$1020.0000
Details

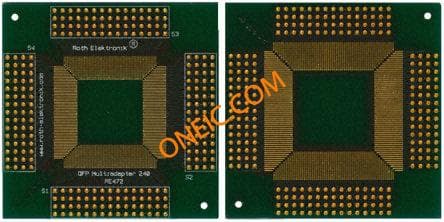

RE472
Roth Elektronik
RE472, Double Sided Matrix Board FR4 With 0.9mm Holes 2.54 x 2.54mm Pitch, 70 x 70 x 1.5mm MULTIADAPTOR, SMD, FR4, 144-240PIN Board: universal; multiadapter; W:70mm; L:70mm Laboratory card FR4 Epoxide + chem. Ni/Au, RE472, Roth Elektronik
$114.7160
Details
