TMS320F28035PNT
| Manufacturer | |
| Description | MCU 32-bit C2000 C28x RISC 128KB Flash 1.8V/3.3V 80-Pin LQFP Tray IC MCU 32BIT 128KB FLASH 80LQFP TMS320F28035PNT, 32 bit Microcontroller C28x 60MHz 128kb Flash, 20kb RAM, I2C LIN SPI 80-Pin LQFP IC, 32BIT MCU, C2000, 60MHZ, LQFP-80 IC, MCU, 32BIT, 128K FLASH, 80LQFP Piccolo Microcontroller Microcontroller 32 Bit LQFP-80, TMS320 F28035, TMS320F28035PNT, Texas Instruments Texas Instruments Piccolo 系列 32 bit C28x MCU, 60MHz, 128 kB ROM 闪存, 20 kB RAM, 80针 LQFP封装 32-bit Microcontrollers - MCU Piccolo Microcntrlr |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85411000 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| GPIO | 33 45 | Speed | 60 MHz |
| Timer | 3 x 32 bit | RAM Size | 20 KB |
| Core Size | 32-Bit | Core Type | C28x |
| Frequency | 60 MHz | Interface | CAN/I2C/SPI/UART |
| Resolution | 16bit | Memory Size | :20KB |
| Number of I/O | 45 | Voltage Rating | 2.97 → 3.63 V |
| Watchdog Timer | 1 | Clock Frequency | :60MHz |
| Data Converters | A/D 16x12b | Frequency - Max | 60MHz |
| Number of DAC's | 1 | Oscillator Type | Internal |
| Serial Protocol | 1 | Voltage - Supply | 1.8|3.3 V |
| RS-232 (422, 485) | 1 | Resolution (Bits) | 12bit |
| Number of Channels | 1 | Analog Input:Output | 12-Bit |
| Program Memory Size | 128 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 16 | Voltage - Supply (Min) | 1.71/2.97 V |
| Frequency (Center/Band) | 32bit | Voltage - Supply (Vcc/Vdd) | 1.71 V ~ 1.995 V |
| Current - Peak Pulse (8/20us) | 60 | ||
Mechanical
| Width | 12.2mm | Height | 1.45mm |
| Length | 12.2mm | Weight | 0.00001 |
| Packaging | Tray | Mounting Type | Surface Mount |
| Number of Pins | :80 | Package / Case | 80LQFP |
| Package Cooled | LQFP | Material Finish | :MSL 3 - 168 hours |
| Package Quantity | 119 | Size / Dimension | 12.2 x 12.2 x 1.45mm |
| Number of Positions | 80 | Number of Cores/Bus Width | 32 Bit |
| Pulse Width Distortion (Max) | 12 x 16 bit | ||
Product Info
| SPI | 1 2 | USB | 0 |
| Class | 1 | DELETED | Compliant |
| Features | CAN Controller | Function | C28x |
| Protocol | 1 | Software | SPRS584J |
| Flash Size | 128 | On-Chip RAM | 16-chx12-bit |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Architecture | RISC |
| Connectivity | CAN, I²C, LIN, SCI, SPI, UART/USART | Programmable | Yes |
| Core Processor | C28x | Pattern Number | Y |
| Number of Timers | 3 | Controller Series | :C2000 |
| Functional Diagram | fbd_sprs584j.gif | RF Family/Standard | C2000 |
| Utilized IC / Part | View | Other Specifications | 1 |
Environmental
| Temperature - Test | -40 to 105 | Operating Temperature | -40 to 105 °C |
| Operating Temperature - Junction | 105C | ||
Documents & Media
Online Document
Online Document
PDF Document
Similar Parts

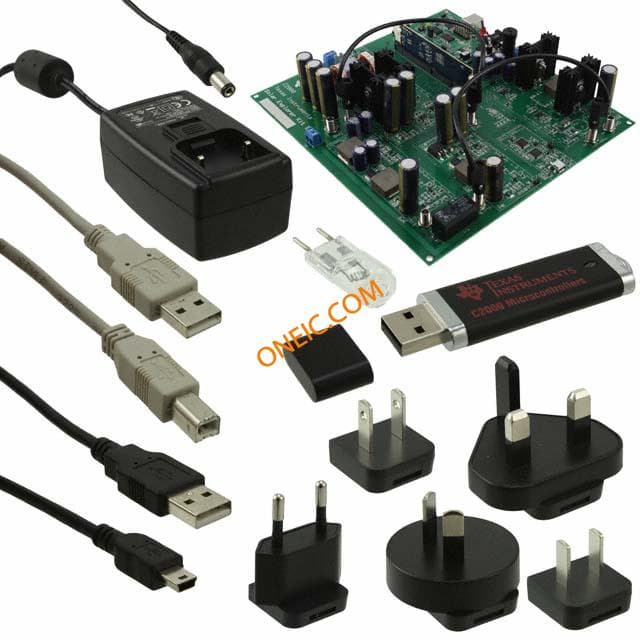

TMDSSOLARPEXPKIT
Texas Instruments
Development Boards & Kits - TMS320 Piccolo-based Solar Explorer Dev Kit Piccolo-Based Solar Explorer Development Kit KIT SOLAR EXPLORER PICCOLO TMDSSOLARPEXPKIT, Development Kit, Power Management, C2000 TMS320F28035, SOLAR, DEVELOPMENT KIT
$2200.0040
Details
TMDXCNCD28035
texas instruments
F28035 Piccolo Control Card Daughter Cards & OEM Boards F28035 Piccolo controlCARD F28035 PICCOLO CONTROLCARD CONTROL CARD PICCOLO F28035
$402.2200
Details

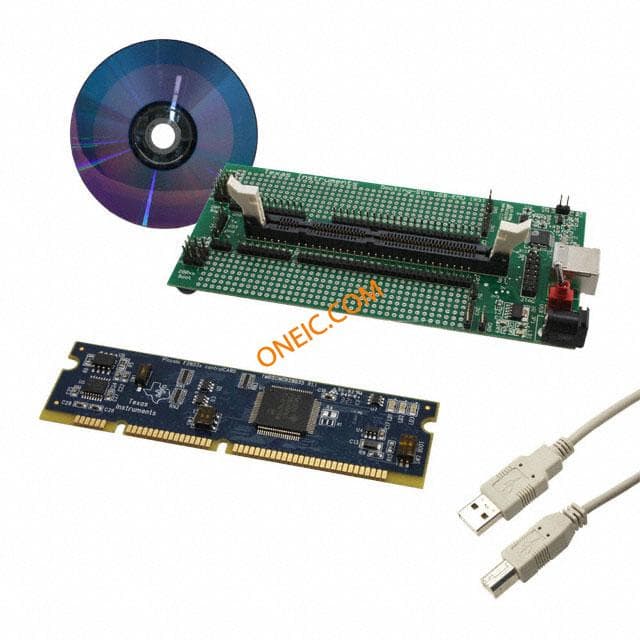

TMDXDOCK28035
