TMS320F28035PAGT
| Manufacturer | |
| Description | MCU 32-bit C2000 C28x RISC 128KB Flash 1.8V/3.3V 64-Pin TQFP Tray IC MCU 32BIT 128KB FLASH 64TQFP 32-bit Microcontrollers - MCU Piccolo Microcntrlr IC, 32BIT MCU, C2000, 60MHZ, TQFP-64 IC, MCU, 32BIT, 128K FLASH, 64TQFP Piccolo Microcontroller |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | Piccolo | Product Category | 32-bit Microcontrollers - MCU |
| Standard Package | Trays | Factory Pack Quantity | 160 |
| Standard Package Name | QFP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
| Approval Agency | No | ||
Electrical
| GPIO | 33 45 | Speed | 60 MHz |
| Timer | 3 32-Bit GP 1 WD | RAM Size | 20 KB |
| Core Size | 32-Bit | Core Type | C28x |
| Frequency | 60 MHz | Interface | CAN/I2C/SPI/UART |
| Clock Rate | 60 MHz | Memory Size | 20 KB |
| Number of I/O | 33 | Number of Bits | 12 |
| Voltage Rating | 1.71|2.97 | Watchdog Timer | 1 |
| Clock Frequency | :60MHz | Data Converters | A/D 14x12b |
| Frequency - Max | 60 MHz | Number of DAC's | :12 |
| Oscillator Type | Internal | Serial Protocol | 1 |
| Voltage - Supply | 1.8|3.3 V | RS-232 (422, 485) | 1 |
| Analog Input:Output | 12-Bit | Program Memory Size | 128 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 14 |
| Voltage - Supply (Min) | 1.71/2.97 V | Voltage - Supply (Vcc/Vdd) | 1.71 V ~ 1.995 V |
| Current - Peak Pulse (8/20us) | 60 | ||
Mechanical
| Width | 10.2(Max) | Weight | 0.001 |
| Packaging | Tray | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :64 | Package / Case | 64TQFP |
| Package Cooled | TQFP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 10.2(Max) | Package Quantity | TQFP |
| Number of Positions | 64 | Shell Size - Insert | 1.05(Max) |
| Number of Cores/Bus Width | 32 Bit | Pulse Width Distortion (Max) | 12 14 |
Product Info
| SPI | 1 | Class | 1 |
| Series | TMS320F28035 | DELETED | Compliant |
| Features | CAN Controller | Function | C28x |
| Protocol | 1 | Software | SPRS584J |
| Flash Size | 128 | On-Chip RAM | 14-chx12-bit |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Architecture | RISC |
| Connectivity | CAN, I²C, LIN, SCI, SPI, UART/USART | Programmable | Yes |
| Core Processor | C28x | Pattern Number | Y |
| Number of Timers | 3 | Controller Series | :C2000 |
| Functional Diagram | fbd_sprs584j.gif | RF Family/Standard | C2000 |
| Utilized IC / Part | View | DigiKey Programmable | Yes |
| Other Specifications | 1 | Printed Circuit Board | 64 |
Environmental
| Temperature - Test | -40 to 105 | Operating Temperature | -40 to 105 °C |
| Operating Temperature - Junction | 105C | ||
Documents & Media
Online Document
PDF Document
Similar Parts

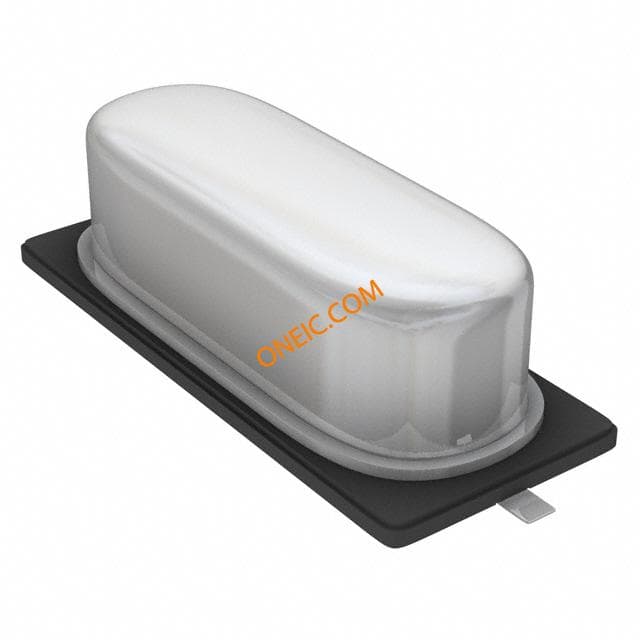

ABLS2-5.000MHZ-D4Y-T
