TMS320F28027PTS
| Manufacturer | |
| Description | MCU 32-bit C2000 C28x RISC 64KB Flash 3.3V 48-Pin LQFP Tray Digital Signal Processors & Controllers - DSP, DSC Piccolo Microcntrlr IC MCU 32BIT 64KB FLASH 48LQFP 32-bit Microcontrollers - MCU Piccolo Microcntrlr MCU, 32BIT, PICCOLO, 60MHZ, LQFP-48 Piccolo Microcontroller |
| Category |
Business
| Tradename | Piccolo | Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| Standard Package | Tape & Reel, Trays | Factory Pack Quantity | 250 |
| Standard Package Name | QFP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Approval Agency | No |
Electrical
| GPIO | 20 22 | Speed | 60 MHz |
| Timer | 3 32-Bit GP 1 WD | RAM Size | 12 KB |
| Core Size | 32-Bit | Core Type | C28x |
| Frequency | 60 | Interface | I2C/SCI/SPI |
| Clock Rate | 60 MHz | Memory Size | 12 KB |
| Number of I/O | 22 | Number of Bits | 12 |
| Voltage Rating | 2.97 | Watchdog Timer | 1 |
| Clock Frequency | :60MHz | Data Converters | A/D 13x12b |
| Oscillator Type | Internal | Serial Protocol | 1 |
| Voltage - Supply | 3.3 V | Number of Channels | 7 |
| Analog Input:Output | 12-Bit | Program Memory Size | 64 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 13 |
| Voltage - Supply (Min) | 3.63 | Number of Bits per Element | 12 bit |
| Voltage - Supply (Vcc/Vdd) | 1.71 V ~ 1.995 V | Current - Peak Pulse (8/20us) | 60 |
Mechanical
| Width | 7.2(Max) | Weight | 0.00027 |
| Packaging | Tray | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :48 | Package / Case | 48LQFP |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 7.2(Max) |
| Package Quantity | LQFP | Number of Positions | 48 |
| Shell Size - Insert | 1.45(Max) | Supplier Device Package | 48-LQFP (7x7) |
| Number of Cores/Bus Width | 32 Bit | Pulse Width Distortion (Max) | 8 |
Product Info
| SPI | 1 | Series | TMS320F2x |
| Function | C28x | Protocol | 1 |
| Software | SPRS523J | Flash Size | 64 |
| On-Chip RAM | 13-chx12-bit | Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Architecture | RISC | Connectivity | I²C, SCI, SPI, UART/USART |
| Core Processor | C28x | Pattern Number | Y |
| Number of Timers | 3 | Controller Series | :Piccolo - TMS320F280xx |
| Functional Diagram | fbd_sprs523j.gif | RF Family/Standard | C2000 |
| Utilized IC / Part | View | DigiKey Programmable | Yes |
| Printed Circuit Board | 48 | ||
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 125 °C |
Documents & Media
Similar Parts
TMDSHVPSFBKIT
texas instruments
HV Phase Shifted Full Bridge Developer's Kit Power Management IC Development Tools HV Phase Shifted Full Bridge Dev Kit KIT DEV HV PHASE SHFTD FULL BRDG F28027, FULL BRIDGE, DEV KIT
TMDSPLCKIT-V3
texas instruments
C2000 Power Line Modem Developers Kit Development Boards & Kits - TMS320 C2000 Power Line Modem Dev Kit KIT DEV C2000 PWR LINE MODEM C2000, POWER LINE MODEM, DEV KIT
TMDSADP1414-ISO
texas instruments
Adaptive Clocking JTag Emulator Adapters Sockets & Adapters Adap Clocking JTAG Emulator Adapters ADAPTER FOR JTAG EMULATOR ADAPTER, XDS510 & XDS560 JTAG EMULATOR Texas Instruments 隔离 JTAG 仿真接口 适配器板
TMDSPLCMODA-P3X
Texas Instruments
Development Boards & Kits - COLDFIRE C2000 Pwr Line Comm Add-on Kit C2000 Power Line Communications Add-On Kit KIT ADD-ON C2000 LED Lighting Development Tools C2000 Pwr Line Comm Add-on Kit TMS320F28035, PWR LINE, EVAL KIT
TMDSIACLEDCOMKIT
Texas Instruments
Development Boards & Kits - COLDFIRE C2000 LED Kit Development Kit For LED Illumination Designs KIT C2000 PICCOLO LED Lighting Development Tools C2000 LED Kit PICCOLO, C2000, LED LIGHTING, KIT
TMDSHVPFCKIT
texas instruments
High Voltage Pfc Developer S Kit Power Management IC Development Tools Hi Vltg PFC Dev Kit KIT DEV HV PFC PICCOLO, TMS320F28027, PFC, DEV KIT
TMDSCNCD28027
texas instruments

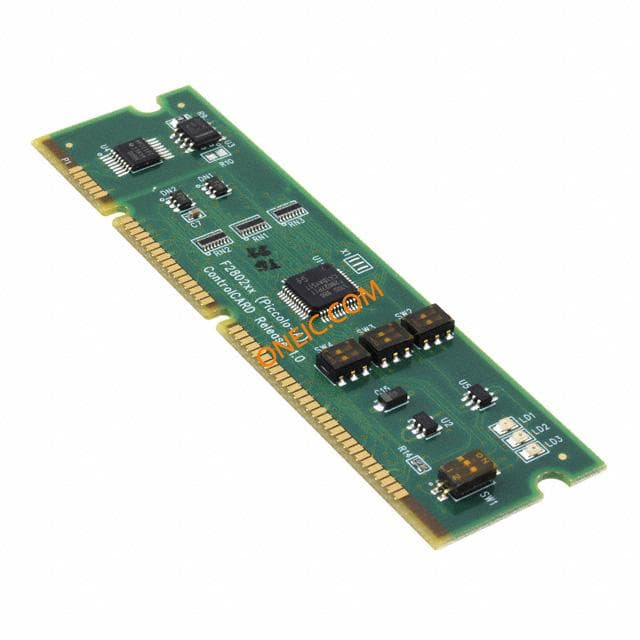

TMDSCNCD28027 Daughter Cards & OEM Boards Piccolo controlCARD PICCOLO CONTROLCARD CONTROL CARD PICCOLO F28027 TMDSCNCD28027, Development Kit, 32 bit, C2000 Piccolo Control Card For Oems To Use For Initial Software Development CONTROLCARD MODULE, TMS320F28027 MCU Texas Instruments 32 位 MCU 微控制器开发套件
TMDS28027USB
texas instruments

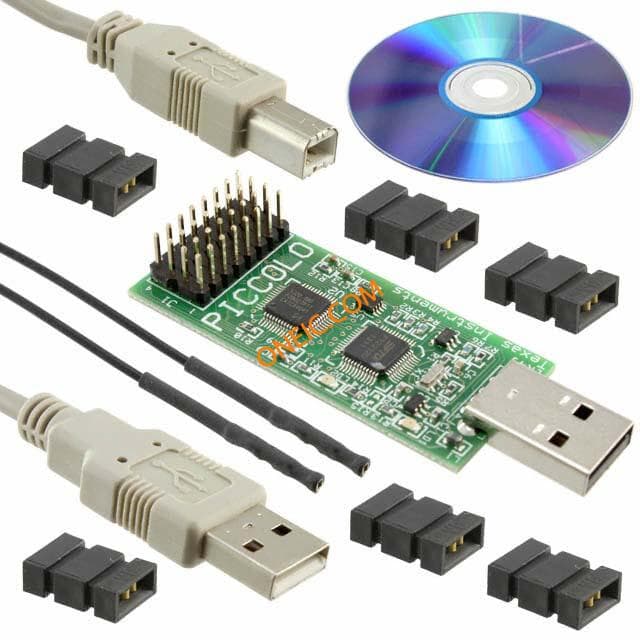

TMDS28027USB Piccolo Control Stick Piccolo Controlstick Of TI Piccolo Microcontroller USB CONTROLSTICK EVAL TOOL Emulators / Simulators TMX320F28027 Piccolo controlSTICK PICCOLO controlSTICK
TMDSHVBLPFCKIT
texas instruments
HV Bridgeless PFC Developer's Kit Power Management IC Development Tools HV Bridgeless PFC Dev Kit KIT C2000 HV FULL BRIDGE PICCOLO, TMS320F28027, PFC, DEV KIT
TMDSHVRESLLCKIT
texas instruments
HV Resonant LLC Developers Kit Power Management IC Development Tools HV Resonant LLC Dev Kit KIT DEV HV RESONANT TMS320F28027, JTAG EMULATOR, DEV KIT
LAUNCHXL-F28027
Texas Instruments

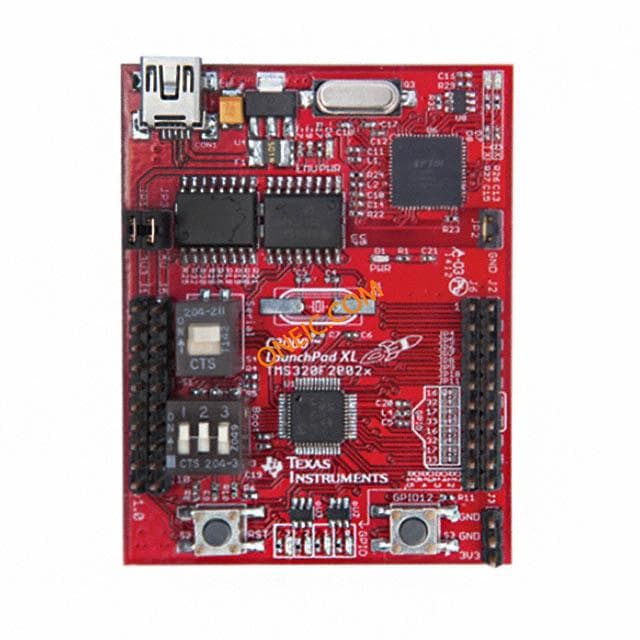

LAUNCH PAD PICCOLO C2000 Development Boards & Kits - TMS320 C2000PiccloLaunchPad C2000 Piccolo LaunchPad Evaluation kit C2000 PICCOLO LAUNCHPAD C2000, PICCOLO, LAUNCHPAD, EVAL BOARD Texas Instruments JTAG 微处理器开发套件
