TMS320F2801PZQ
| Manufacturer | |
| Description | DSP Fixed-Point 32-Bit 100MHz 100MIPS 100-Pin LQFP IC MCU 32BIT 32KB FLASH 100LQFP Digital Signal Processors & Controllers - DSP, DSC 32B Dig Signal Controller 32-Bit Digital Signal Controller with Flash |
| Category |
Business
| Product | DSPs | Tradename | C2000 |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC | Standard Package | Trays |
| Factory Pack Quantity | 90 | Standard Package Name | QFP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| GPIO | 35 | Speed | 100 MHz |
| Timer | 3 32-Bit GP 1 WD | RAM Size | 12 KB |
| Core Size | 32-Bit | Frequency | 100 |
| Clock Rate | 100 MIPS | Memory Size | 12 KB |
| Number of I/O | 35 | Voltage Rating | 1.71|3.14 |
| Clock Frequency | 100 MHz | Data Converters | A/D 16x12b |
| Oscillator Type | Internal | Serial Protocol | 1 |
| Voltage - Supply | 1.8|3.3 V | RS-232 (422, 485) | 1 |
| Analog Input:Output | 1 16-Ch 12-Bit | Program Memory Size | 32 KB |
| Program Memory Type | Flash | Voltage - Supply (Min) | 1.71/3.14 V |
| Voltage - Supply (Vcc/Vdd) | 1.71 V ~ 1.89 V | Current - Peak Pulse (8/20us) | 100 |
Mechanical
| Width | 14.2(Max) | Weight | 0.022420 oz |
| Packaging | Tray | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 100LQFP | Package Cooled | LQFP |
| Length - Overall | 14.2(Max) | Package Quantity | LQFP |
| Number of Positions | 100 | Shell Size - Insert | 1.45(Max) |
| Number of Cores/Bus Width | 32 Bit | Pulse Width Distortion (Max) | 8 |
Product Info
| SPI | 2 | Format | Fixed Point |
| Series | TMS320F2801 | DELETED | Compliant |
| Function | C28x | Protocol | 1 |
| Software | SPRS230N | Flash Size | 32 |
| Peripherals | POR, PWM, WDT | Architecture | Harvard |
| Connectivity | CAN, I²C, SCI, SPI, UART/USART | Manufacturer | Texas Instruments |
| Programmable | Yes | Number Format | Fixed-Point |
| Core Processor | C28x | Instruction Type | Fixed Point |
| Functional Diagram | fbd_sprs230n.gif | Utilized IC / Part | View |
| Printed Circuit Board | 100 | Number of Inputs and Type | 35 I/O |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40°C ~ 125°C |
| Operating Temperature - Junction | 125C | ||
Documents & Media
Similar Parts
TPS73601DBVTG4
texas instruments
LDO Regulator Pos 1.2V to 5.5V 0.4A 5-Pin SOT-23 T/R IC REG LDO ADJ 0.4A SOT23-5 LDO Voltage Regulators Cap-Free NMOS 400mA V REG LDO 400MA 1.2V, SMD, 73601 Voltage stabiliser; LDO, fixed; 1.2V; 0.4A; SMD; SOT23-5 Single Output LDO, 400mA, Adj.(1.2 to 5.5V), Cap free, Low Noise, Reverse Current Protection
MSP430F149IPAG
texas instruments
MCU 16-bit MSP430 RISC 60KB Flash 2.5V/3.3V 64-Pin TQFP Tray 16-bit Microcontrollers - MCU 60 kB Flash 2KB RAM 12b ADC-2 USART-HW MCU 16-bit MSP430 MSP430 RISC 60KB Flash 2.5V/3.3V 64-Pin TQFP Tray IC MCU 16BIT 60KB FLASH 64TQFP MSP430F149IPAG, 16 bit Microcontroller MSP430 8MHz 60kb Flash, 2kb RAM, SPI 64-Pin TQFP IC, MICROCONTROLLER, 16BIT, SMD 16-Bit Ultra-Low-Power Microcontroller, 60 kB Flash, 2KB RAM, 12 bit ADC, 2 USARTs, HW multiplier Texas Instruments MSP430 系列 16 bit MSP430 MCU, 8MHz, 256 B，60 kB ROM 闪存, 2 kB RAM, 64针 TQFP封装
TMP112AIDRLT
texas instruments

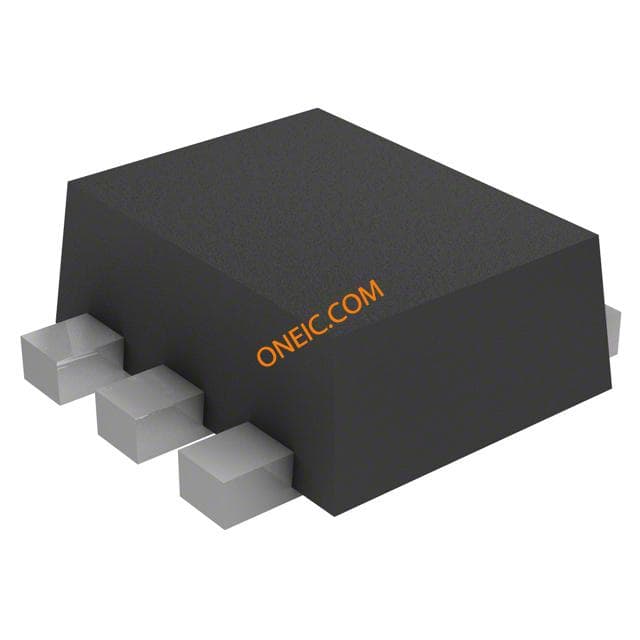

Temp Sensor Digital Serial (2-Wire) 6-Pin SOT T/R Temp Sensor Digital Serial (2-Wire) 6-Pin SOT-563 T/R IC TEMP SENSOR DGTL 5V SOT563 TMP112AIDRLT, 12bit Temperature Sensor ±0.1°C Serial-2 Wire 1.4 to 3.6V 6-Pin SOT Board Mount Temperature Sensors Hi-Prec Lo-Pwr Dig Temp Sensor IC, DIGITAL TEMP SENSOR, 6SOT 1.4V-Capable ±0.5°C Temperature Sensor with Alert Function and I2C/SMBus interface in SOT-563 Temperature sensor SOT-563, TMP112AIDRLT, Texas Instruments , 12 位 温度传感器, ±0.1°C, 串行 - 2线接口, 6针 SOT-553封装
