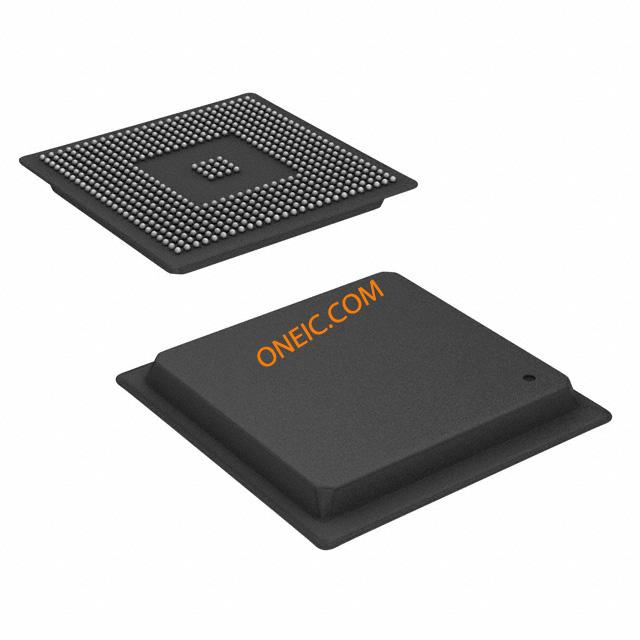

TMS320DM642AZDK5
| Manufacturer | |
| Description | DSP Fixed-Point 32-Bit 500MHz 4000MIPS 548-Pin FCBGA IC FIXED-POINT DSP 548-FCBGA Digital Signal Processors & Controllers - DSP, DSC Video/Imaging Fixed-Point DSP Video/Imaging Fixed-Point Digital Signal Processor |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | DSPs | Tradename | DaVinci |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC | Standard Package | Trays |
| Factory Pack Quantity | 60 | Standard Package Name | BGA |
Compliance
| RoHS | Contains lead / RoHS non-compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Speed | 500 MHz | Memory | 16 kB |
| Core Size | 32 b | Core Type | TMS320C64x |
| Interface | Host Interface, I²C, McASP, McBSP, PCI | Clock Rate | 4000 MIPS |
| Memory Size | 256 kB | Number of I/O | 16 |
| Voltage - I/O | 3.30V | Voltage - Core | 1.20V |
| Voltage Rating | 1.14|3.14 | Watchdog Timer | Watchdog Timer |
| Clock Frequency | 500 MHz | Voltage - Supply | 1.2|3.3 V |
| Non-Volatile Memory | External | Program Memory Size | Not Required kB |
| Program Memory Type | ROMLess | Voltage - Supply (Min) | 1.14/3.14 V |
| Frequency (Center/Band) | 500MHz | Number of Counter/Timers | 3 x 32 bit |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 23.1(Max) | Weight | 0.086284 oz |
| Packaging | Tray | Lead Style | Ball |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 548FCBGA | Package Cooled | FCBGA |
| Connector Usage | Host Interface, I²C, McASP, McBSP, PCI | Length - Overall | 23.1(Max) |
| Package Quantity | FCBGA | Number of Positions | 548 |
| Shell Size - Insert | 2.05(Max) | Supplier Device Package | 548-FCBGA (23x23) |
| Number of Cores/Bus Width | 32 Bit | ||
Product Info
| Type | Fixed Point | Format | Fixed Point |
| Series | TMS320DM642 | DELETED | Compliant |
| Software | SPRS200N | On-Chip RAM | 160kB |
| Architecture | Advanced VLIW | Manufacturer | Texas Instruments |
| Programmable | No | Number Format | Fixed-Point |
| Core Processor | TMS320 | Number of Cores | 1 Core |
| Instruction Type | Fixed Point | Functional Diagram | fbd_sprs200n.gif |
| Utilized IC / Part | View | Other Specifications | 4000 |
| Printed Circuit Board | 548 | Number of Inputs and Type | 16 I/O |
Environmental
| Operating Temperature | 0°C ~ 90°C | Operating Temperature - Junction | 90C |
