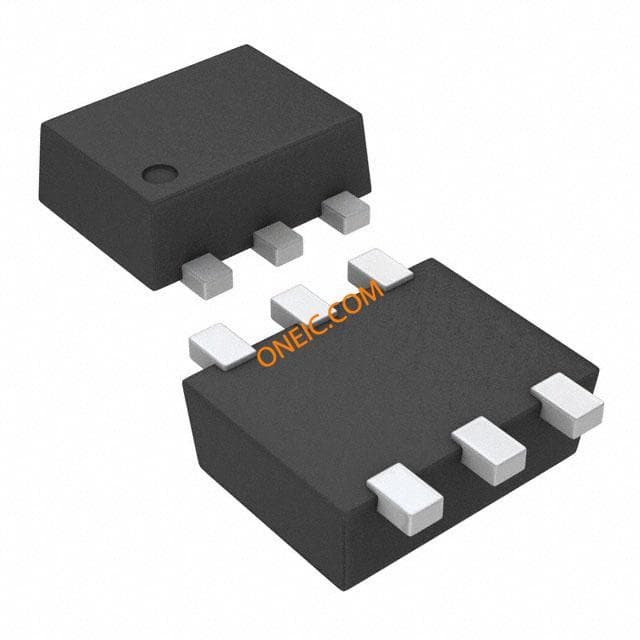

TMP303ADRLT
| Manufacturer | |
| Description | Temp Sensor Analog 6-Pin SOT T/R Temp Sensor Analog 6-Pin SOT-563 T/R IC TEMP RANGE MON 1.4V SOT-563 Board Mount Temperature Sensors Low Power 1C 1.4V Temp Range Mon IC, TEMP SWITCH, 6SOT Fixed 60°C Trip Point 1.4V-Capable Temperature Switch |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-25120-2 | Product Category | Board Mount Temperature Sensors |
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | SOT-563 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Accuracy | ±0.2 °C | Output Fan | No |
| Output Type | Analog | Sensor Type | Internal |
| Sensing Range | :-40°C to +125°C | Voltage Rating | :0.4V |
| Current - Output | 8 mA | Voltage - Supply | 1.4 to 3.6 V |
| Current Rating (Max) | Catalog | Voltage - Supply (Min) | 1.4 V |
Mechanical
| Width | 1.3(Max) | Weight | 0.0004 |
| Packaging | Tape and Reel | Lead Style | Flat |
| Termination | :SMD | Mounting Type | Surface Mount |
| Contact Timing | :± 0.2°C | Mounting Style | SMD/SMT |
| Number of Pins | :6 | Package / Case | 6SOT |
| Package Cooled | SOT | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 1.7(Max) | Package Quantity | SOT-563 |
| Number of Positions | 6 | Shell Size - Insert | 0.55(Max) |
| Supplier Device Package | SOT-563 | ||
Product Info
| Series | TMP303A | DELETED | Compliant |
| Function | Temp Sensor | Shutdown | No |
| Software | SBOS486B | Topology | ADC (Sigma Delta) |
| Base Unit | :303 | Output Alarm | No |
| Configuration | Local | Functional Diagram | fbd_sbos486b.gif |
| Utilized IC / Part | View | Printed Circuit Board | 6 |
Environmental
| Temperature - Test | -40 to 125 | Sensing Temperature | -40°C ~ 125°C |
| Operating Temperature | -40°C ~ 125°C | Sensing Temperature - Local | :-40°C |
| Operating Temperature - Junction | 125C | ||
