TMP122AIDBVT
| Manufacturer | |
| Description | Temp Sensor Digital Serial (SPI) 6-Pin SOT-23 T/R IC PROG DIG TEMP SENSOR SOT23-6 Board Mount Temperature Sensors 1.5C Accurate Dig w/SPI Interface TEMP SENSOR, +/-2 DEG C, SOT-23-6 Temperature Sensor with SPI Interface with Alert Function in SOT-23 Texas Instruments , 12+符号位 温度传感器, ±1.5°C, 串行 - SPI接口, 6针 SOT-23封装 |
| Category |
Business
| Other Names | 296-15178-2 | Product Category | Board Mount Temperature Sensors |
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 90251920 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Accuracy | ±1.5 °C | Interface | Serial (SPI) |
| Output Fan | No | Resolution | 12+Sign Bit |
| Output Type | Digital | Sensor Type | Internal |
| Number of Bits | 9 bit to 12 bit | Voltage Rating | 2.7 |
| Current - Output | 3 mA | Voltage - Supply | 2.7 to 5.5 V |
| Digital I/O Lines | 3-Wire, Microwire, SPI | Resolution (Bits) | :12bit |
| Current Rating (Max) | Catalog | Voltage - Supply (Min) | 2.7 V |
Mechanical
| Width | 1.75(Max) | Weight | 0.000033 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Contact Timing | :± 2°C |
| Mounting Style | SMD/SMT | Number of Pins | :6 |
| Package / Case | 6SOT-23 | Package Cooled | SOT-23 |
| Material Finish | :MSL 2 - 1 year | Length - Overall | 3.05(Max) |
| Package Quantity | SOT-23 | Number of Positions | 6 |
| Shell Size - Insert | 1.3(Max) | Supplier Device Package | SOT-23-6 |
Product Info
| Series | TMP122 | DELETED | Compliant |
| Features | Configurable Resolution Programmable Alert Fault Queue Shutdown | Function | Temp Sensor |
| Shutdown | Yes | Software | SBOS272B |
| Topology | ADC (Sigma Delta), Register Bank | Output Alarm | No |
| Configuration | Local | Utilized IC / Part | View |
| Printed Circuit Board | 6 | ||
Environmental
| Temperature - Test | -40 to 125 | Sensing Temperature | -40°C ~ 125°C |
| Operating Temperature | -40°C ~ 125°C | Switching Temperature | Programmable |
| Sensing Temperature - Local | :-40°C | Temperature Coefficient (Typ) | 1.5 |
| Operating Temperature - Junction | 125C | ||
Documents & Media
Similar Parts

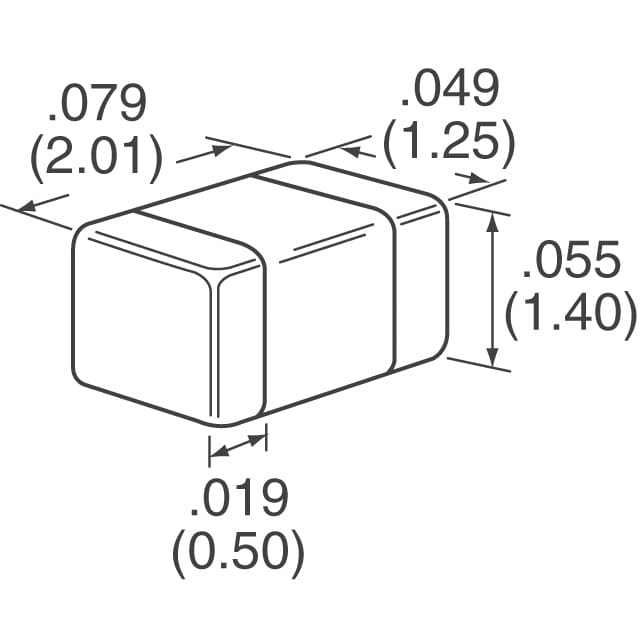

08051C104KAZ2A
