TLV320AIC3106IRGZT
| Manufacturer | |
| Description | Audio Codec 2ADC / 2DAC 24-Bit 48-Pin VQFN EP T/R IC AUDIO CODEC 24BIT PCM 48VQFN Interface - CODECs Lo-Pwr Stereo CODEC CODEC, STEREO, 32BIT, 96KSPS, VQFN-48 Low-Power Stereo CODEC with 10 Inputs, 7 Outputs, HP Amplifier and Enhanced Digital Effects 立体声通道 96ksps 24bit 通用 音视频编码器和解码器 IC, 串行2线、串行I2C接口, 48针 VQFN封装 |
| Category |
Business
| Other Names | 296-31972-1 | Product Category | Interface - CODECs |
| Standard Package | Cut Tape | Factory Pack Quantity | 250 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| DAC Type | 2 | Coil Type | :Stereo Codec |
| Interface | Serial (2-Wire, I2C, I2S) | S/N Ratio | 102 |
| Output Fan | Yes | Resolution | 24 bit |
| Sigma Delta | Yes | Input Signal | L R I2S DSP TDM |
| Data Interface | PCM Audio Interface | Spectral Range | -88 |
| Data Rate (Max) | 96 kSPs | Number of DAC's | 7 |
| Number of Inputs | :10 | Voltage - Supply | 3.3 V |
| Distortion Rating | -94 | Power Supply Type | Analog/Digital |
| Resolution (Bits) | 24 Bit | Number of Channels | 2ADC /2 DAC |
| Sampling Frequency | 96 ksps | Current Rating (Max) | Catalog |
| Number of ADCs / DACs | 6 | Voltage - Supply (Min) | 2.7 V |
| Power - Average Forward | 14 | Voltage - Supply, Analog | 2.7 V ~ 3.6 V |
| Voltage - Supply, Digital | 1.65 V ~ 1.95 V | Sampling Rate (Per Second) | 96 KSPS |
| S/N Ratio, ADCs / DACs (db) Typ | 92 / 102 | Dynamic Range, ADCs / DACs (db) Typ | 91 / 92 |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 7.15(Max) | Weight | 0.004847 oz |
| Packaging | Tape & Reel (TR) | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :48 | Package / Case | 48VQFN EP |
| Package Cooled | VQFN EP | Material Finish | :MSL 2 - 1 year |
| Length - Overall | 7.15(Max) | Package Quantity | VQFN EP |
| Number of Positions | 48 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 48-VQFN (7x7) | ||
Product Info
| Type | General Purpose | Series | TLV320AIC3106 |
| Features | 3D EQ Matrix Mixing PLL Alt Audio Int. HS detect | Software | SLAS509F |
| Control Interface | SPI I2C | Functional Diagram | fbd_slas509f.gif |
| Utilized IC / Part | View | Printed Circuit Board | 48 |
| Number of Inputs and Type | 10 / 7 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts

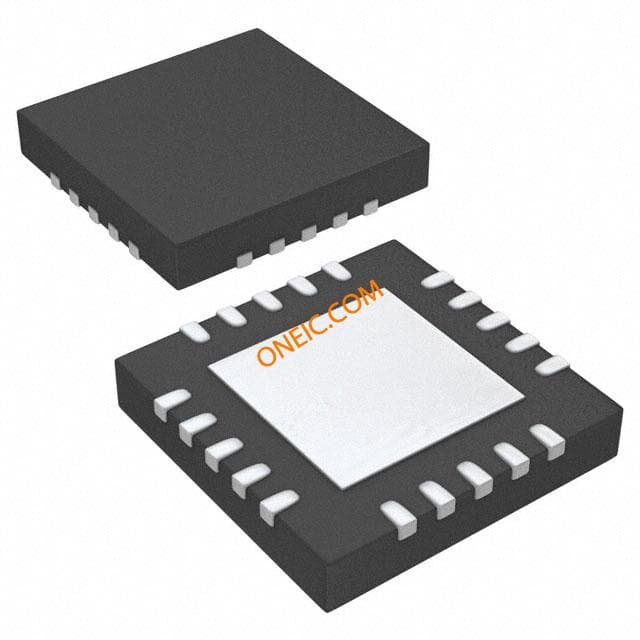

TPA2012D2RTJTG4
