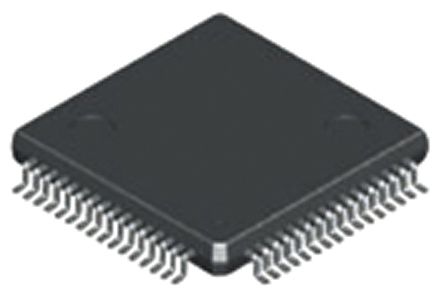

TLK2501IRCP
| Manufacturer | |
| Description | PHY 1-CH 64-Pin HVQFP EP Tray Ethernet ICs 1.5 to 2.5 Gbps Transceiver IC TRNSCVR 1.6-2.5GBPS 64-HVQFP TRANSCEIVER, 1.5-2.5GBPS, HVQFP-64 1.5 to 2.5 Gbps Transceiver 2.5Gbit/s 以太网收发器, 支持IEEE 802.3z标准, 2.5 V, 64针 HVQFP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Ethernet Transceivers | Product Category | Ethernet ICs |
| Standard Package | Rail / Tube, Trays | Factory Pack Quantity | 160 |
| Standard Package Name | QFP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Standards | IEEE 802.3z |
| Tariff No | 85423990 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Data Rate | 2.5 Gbps | Input Type | LVTTL |
| Logic Type | :Transceiver | Output Type | CML, TTL |
| Voltage Rating | 2.3 | Data Rate (Max) | 2.5 Gbps |
| Current - Output | 145(Typ) mA | Current - Supply | 145 mA |
| Number of Inputs | 1 | Voltage - Supply | 2.7 V |
| Number of Outputs | 1 | Power Supply Type | Analog|Digital |
| Number of Channels | 1 | Signal Conditioning | No |
| Current - Input Bias | 145 | Current Rating (Max) | Catalog |
| Voltage - Supply (Min) | 2.3 V | Power - Average Forward | 362 |
| Power Dissipation (Max) | 2890 | Logic Voltage - VIL, VIH | 3.6 |
| Connector - Voltage Input | No | Differential - Input:Output | No |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 10 | Weight | 0.008004 oz |
| Packaging | Tray | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :64 |
| Package / Case | 64HVQFP EP | Package Cooled | HVQFP |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 10 |
| Package Quantity | HVQFP EP | Number of Positions | 64 |
| Shell Size - Insert | 0.8 | Supplier Device Package | 64-HVQFP |
| Number of Positions/Bay/Row | 16 | ||
Product Info
| Type | Single Chip | Series | TLK2501 |
| Function | Serializer/Deserializer | Protocol | No |
| Software | SLLS427D | Channels per IC | 2.5 |
| Utilized IC / Part | View | Number of Receivers | 1 |
| Output Configuration | CML | Printed Circuit Board | 64 |
| Included MCU/MPU Board(s) | No | Number of Transmitters/Receivers | 1 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | + 85 C |
| Operating Temperature - Junction | 85C | ||
