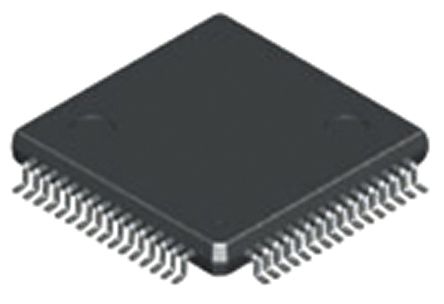

点击放大查看
TLK2201BRCP
| Manufacturer | |
| Description | PHY 1-CH 64-Pin HVQFP EP Tray Ethernet ICs 1.0 to 1.6 Gb Ethernet Transceiver IC ETHERNT TXRX 1-1.6GBPS 64HVQF 1.0 to 1.6 Gigabit Ethernet Transceiver 1.6Gbit/s 以太网收发器, 支持IEEE 802.3标准, 2.5 V, 64针 HVQFP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Ethernet Transceivers | Other Names | 296-16728 |
| Product Category | Ethernet ICs | Standard Package | Rail / Tube, Trays |
| Factory Pack Quantity | 160 | Standard Package Name | QFP |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Standards | IEEE 1149.1|IEEE 802.3 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Data Rate | 1.6 Gbps | Input Type | LVTTL |
| Voltage Rating | 2.3 | Data Rate (Max) | 1.6 Gbps |
| Current - Output | 111 mA | Current - Supply | 111 mA |
| Voltage - Supply | 2.7 V | Power Supply Type | Analog|Digital |
| Number of Channels | 1 | Number of Elements | 1 |
| Signal Conditioning | No | Current Rating (Max) | 111 mA |
| Voltage - Supply (Min) | 2.3 V | Power - Average Forward | 200 |
| Power Dissipation (Max) | 2890 | Connector - Voltage Input | No |
| Differential - Input:Output | Yes | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Width | 10mm | Height | 0.8mm |
| Length | 10mm | Weight | 0.008004 oz |
| Packaging | Tube | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 64 |
| Package / Case | 64HVQFP EP | Package Cooled | HVQFP |
| Length - Overall | 10 | Package Quantity | HVQFP EP |
| Size / Dimension | 10 x 10 x 0.8mm | Number of Positions | 64 |
| Shell Size - Insert | 0.8 | Supplier Device Package | 64-HVQFP |
| Number of Positions/Bay/Row | 10 | ||
Product Info
| Type | Single Chip | Duplex | Full |
| Series | TLK2201B | DELETED | Compliant |
| Function | Y | Protocol | No |
| Software | SLLS585C | Manufacturer | Texas Instruments |
| Compatibility | IEEE 802.3 | Channels per IC | 1.6 |
| Utilized IC / Part | View | Number of Receivers | 1 |
| Output Configuration | LVPECL | Printed Circuit Board | 64 |
| Included MCU/MPU Board(s) | No | Number of Drivers/Receivers | 1/1 |
| Number of Transmitters/Receivers | 1 | ||
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | + 70 C |
| Operating Temperature - Junction | 70C | ||
