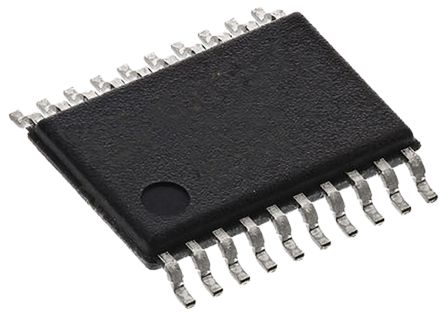

TLC3544IPW
| Manufacturer | |
| Description | ADC Single SAR 200ksps 14-bit Serial 20-Pin TSSOP Tube Single ADC SAR 200ksps 14-bit Serial 20-Pin TSSOP Tube IC UNIPOLAR A/D 4-CH 20-TSSOP Analog to Digital Converters - ADC 14-bit 5V 200KSPS 4-Channel Unipolar 14-bit, 5V, 200KSPS, 4-Channel Unipolar ADC Texas Instruments , 14 位 ADC, 差分输入, SPI接口, 20针 TSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Analog to Digital Converters | Other Names | 296-10289-5 |
| Product Category | Analog to Digital Converters - ADC | Standard Package | Rail / Tube |
| Factory Pack Quantity | 70 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Interface | Serial (3-Wire, SPI) | Linearity | �1LSB |
| S/N Ratio | 81(Typ) dB | Input Type | Voltage |
| Resolution | 14 Bit | Input Signal | Single-Ended|Pseudo-Differential |
| INL/DNL (LSB) | ±1LSB | Power - Input | Analog and Digital |
| Converter Type | General Purpose | Data Interface | DSP, Serial, SPI™ |
| Input Polarity | Unipolar | Number of Bits | 14 |
| Reference Type | Ext Int | Voltage Rating | 4V |
| Data Rate (Max) | 200 KSPs | Voltage - Rated | 4 |
| Number of Inputs | 4 | Voltage - Supply | 2.7 V to 5.5 V, 4.75 V to 5.5 V |
| Digital I/O Lines | 串行 （SPI） | Distortion Rating | ±1LSB |
| Voltage Reference | Internal|External | Number of Channels | 4 Channel |
| Number of Elements | 1 | Sampling Frequency | 200 ksps |
| Analog Input:Output | 5.5 | Current Rating (Max) | Catalog |
| Number of ADCs / DACs | 1 | Voltage Supply Source | Analog and Digital |
| Power - Average Forward | 20 | Voltage - Supply, Analog | 4.5 V to 5.5 V |
| Differential Nonlinearity | ±1LSB | Voltage - Supply, Digital | 5.5 |
| Sampling Rate (Per Second) | 200k | Differential - Input:Output | Yes |
| Voltage - Supply Span (Typ) | Not Required V | S/N Ratio, ADCs / DACs (db) Typ | 81 dB |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 4.4mm | Height | 1.15mm |
| Length | 6.5mm | Weight | 0.002758 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 20 | Package / Case | 20TSSOP |
| Package Cooled | TSSOP | Length - Overall | 6.6(Max) |
| Package Quantity | TSSOP | Size / Dimension | 6.5 x 4.4 x 1.15mm |
| Number of Positions | 20 | Shell Size - Insert | 1.05(Max) |
| Supplier Device Package | 20-TSSOP | Shell Size - Insert (Convert To) | SAR |
Product Info
| Series | TLC3544 | DELETED | Compliant |
| Features | Internal Reference | Software | SLAS266C |
| Architecture | SAR | Manufacturer | Texas Instruments |
| Development Kit | TLC3544EVM | Functional Diagram | fbd_slas266c.gif |
| Utilized IC / Part | View | Printed Circuit Board | 20 |
| Number of A/D Converters | 4|2 | Number of Inputs and Type | 4 Single-Ended, Unipolar; 2 Pseudo-Differential, Unipolar |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
Documents & Media
PDF Document
