TLC1549CP
| Manufacturer | |
| Description | ADC Single SAR 38ksps 10-bit Serial 8-Pin PDIP Tube Analog to Digital Converters - ADC Single In Serial Single ADC SAR 38ksps 10-bit Serial 8-Pin PDIP Tube IC 10-BIT SERIAL A/D CONV 8-DIP TLC1549CP, 10-Bit Analogue to Digital Converter, SPI, 8-Pin PDIP 10-Bit, 38 kSPS ADC Serial Out, On-Chip System Clock, Single Ch. Texas Instruments , 10 位 ADC, SPI接口, 8针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Analog to Digital Converters | Product Category | Analog to Digital Converters - ADC |
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Interface | Serial (3-Wire) | Linearity | �1LSB |
| Input Type | Voltage | Resolution | 10 Bit |
| Input Signal | Single-Ended | INL/DNL (LSB) | ±1LSB |
| Power - Input | Single | Converter Type | General Purpose |
| Data Interface | Serial | Input Polarity | Unipolar |
| Number of Bits | 10 | Reference Type | Ext |
| Voltage Rating | 5V | Data Rate (Max) | 38 KSPs |
| Voltage - Rated | 5 | Number of Inputs | 1 |
| Voltage - Supply | 4.5 V to 5.5 V | Digital I/O Lines | 串行 （SPI） |
| Distortion Rating | ±1LSB | Voltage Reference | External |
| Number of Channels | 1 | Number of Elements | 1 |
| Sampling Frequency | 38 ksps | Analog Input:Output | 5.5 |
| Current Rating (Max) | Catalog | Number of ADCs / DACs | 1 |
| Voltage Supply Source | Single | Power - Average Forward | 4 |
| Voltage - Supply, Analog | 4.5 V to 5.5 V | Differential Nonlinearity | ±1LSB |
| Voltage - Supply, Digital | 5.5 | Sampling Rate (Per Second) | 38k |
| Differential - Input:Output | No | Voltage - Supply Span (Typ) | Not Required V |
| S/N Ratio, ADCs / DACs (db) Typ | Yes | ||
Mechanical
| Width | 6.35mm | Height | 4.57mm |
| Length | 9.81mm | Weight | 0.015535 oz |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | 8 | Package / Case | 8PDIP |
| Package Cooled | PDIP | Length - Overall | 10.16(Max) |
| Package Quantity | PDIP | Size / Dimension | 9.81 x 6.35 x 4.57mm |
| Number of Positions | 8 | Shell Size - Insert | 5.08(Max) - 0.51(Min) |
| Supplier Device Package | 8-PDIP | Shell Size - Insert (Convert To) | SAR |
Product Info
| Series | TLC1549 | Function | Y |
| Software | SLAS059C | Architecture | SAR |
| Manufacturer | Texas Instruments | Functional Diagram | fbd_slas059c.gif |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
| Number of A/D Converters | 1 | Number of Inputs and Type | 1 Single-Ended, Unipolar |
Environmental
| Operating Temperature | + 70 C | ||
Documents & Media
Similar Parts

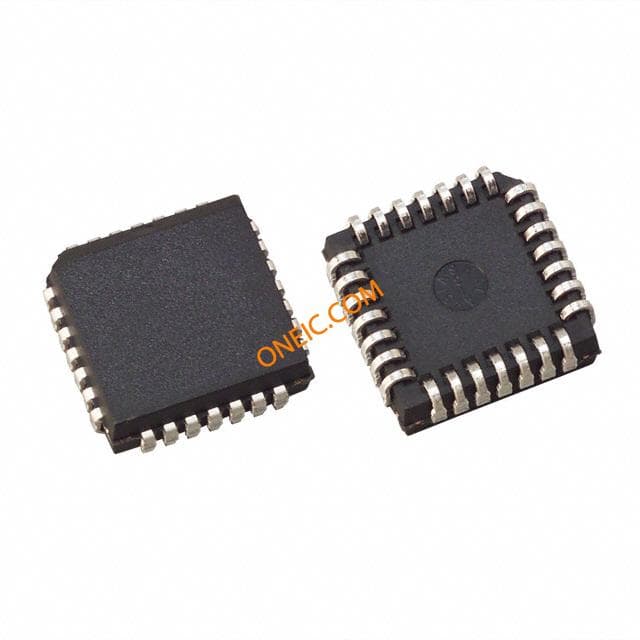

TLC1550IFN
