TL1963ADCQR
| Manufacturer | |
| Description | LDO Regulator Pos 1.21V to 20V 1.5A 6-Pin(5+Tab) SOT-223 T/R Low Dropout Regulators - LDO Sgl Output LDO 1.5A Adj Fast Trans Resp IC REG LDO ADJ 1.5A SOT223-6 LDO Voltage Regulators Sgl Output LDO 1.5A Adj Fast Trans Resp REGULATOR, LDO, ADJ, 1.5A, SOT-223-6 Single Output LDO, 1.5A, Adj. (1.21V to 20V), Fast Transient Response |
| Category |
Business
| Other Names | 296-25119-2 | Product Category | Low Dropout Regulators - LDO |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | SOT-223 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| PSRR | 45 | Noise | 40 |
| Output | 1 | Output Type | Adjustable |
| Regulator Type | Linear | Voltage Rating | 1.9 V |
| Line Regulation | 5 mV | Load Regulation | 8 mV |
| Current - Output | 1.5 A | Voltage - Supply | 0.02@1mA|0.1@100mA|0.19@500mA|0.34@1.5A V |
| Number of Outputs | 1 | Voltage Reference | 1.21 V |
| Regulator Topology | Positive Adjustable | Current Rating (Max) | Catalog |
| Number of Regulators | 1 | Voltage - Input (Min) | 20 V |
| Voltage - Output (Max) | :20V | Current - Quiescent (Iq) | 1 |
| DC Voltage - Input (Min) | 1.9 V | Current - Quiescent (Max) | 1.6A |
| Current - Input Bias (Max) | 1 mA | Voltage - Output (Min/Fixed) | :1.21V |
| Voltage - Continuous Operating (Max) (MCOV) | :20V | ||
Mechanical
| Width | 3.55(Max) | Weight | 0.004265 oz |
| Packaging | Reel | Tab Width | Tab |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :5 |
| Package / Case | 6SOT-223 | Package Cooled | SOT-223 |
| Material Finish | :MSL 2 - 1 year | Length - Overall | 6.55(Max) |
| Package Quantity | SOT-223 | Number of Positions | 6 |
| Shell Size - Insert | 1.65(Max) | Supplier Device Package | SOT-223-6 |
Product Info
| Type | LDO | Series | TL1963A |
| Features | Current Limit|Reverse Battery Pro... | Polarity | Positive |
| Software | SLVS719G | Topology | LDO |
| Pattern Number | Y | Outputs and Type | Adjustable Output |
| Functional Diagram | fbd_slvs719g.gif | Utilized IC / Part | View |
| Printed Circuit Board | 5 | ||
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
Similar Parts
TXS0102DCUR
texas instruments
Voltage Level Translator 8-Pin VSSOP T/R IC VOLT-LEVEL TRANSLATOR US8 IC, TRANSLATOR IC, VOLTAGE LEVEL TRANSLATOR, US8-8, FULL REEL 2-Bit Bidirectional Voltage-Level Translator for Open-Drain and Push-Pull Application Translation - Voltage Levels 2-Bit Bi-Directional Voltage-Level-Trans
SN74LVC2G06DCKR
texas instruments
Buffer/Driver 2-CH Inverting Open Drain CMOS 6-Pin SC-70 T/R Buffers & Line Drivers Dual w/ Open-Drain IC INVERTER DUAL 1INPUT SC706 IC, 74LVC2G, INVERTER, SC706 Dual Inverter Buffer/Driver with Open-Drain Output LVC, 2-Bit 漏极开路 反相 缓冲器，驱动器, 6针 SC-70封装
12103D226MAT2A
avx

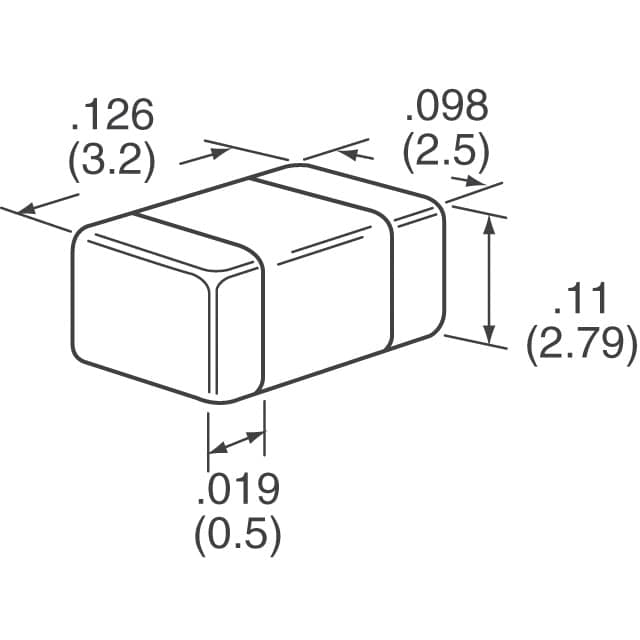

Cap Ceramic 22uF 25V X5R 20% SMD 1210 85°C Embossed T/R Multilayer Ceramic Capacitors MLCC - SMD/SMT 22UF 25volts 20% X5R CAP CER 22UF 25V 20% X5R 1210 Cap Ceramic 22uF 25V X5R 20% SMD 1210 85C Embossed T/R CAPACITOR CERAMIC, 22UF, 25V, X5R, 20%, 1210, FULL REEL CAPACITOR CERAMIC, 22UF, 25V, X5R, 20%, 1210 CAP, MLCC, X5R, 22UF, 25V, 1210 Capacitor;Ceramic;Cap22uFTol20%;SMT;Vol-Rtg25V;X5R;TR Capacitor: ceramic; MLCC; 22uF; 25V; X5R; ±20%; SMD; 1210
