点击放大查看

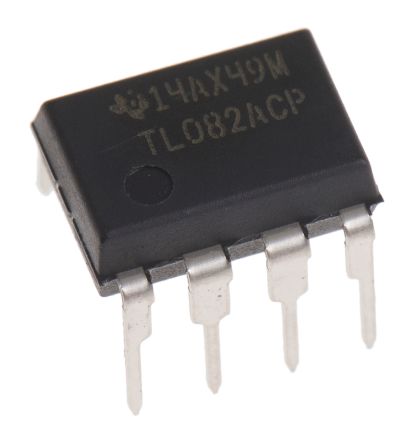

TL082ACP
| Manufacturer | |
| Description | OP Amp Dual GP ±18V 8-Pin PDIP Tube IC OPAMP JFET 3MHZ 8DIP TL082ACP, Dual Operational Amplifier 3MHz, 8-Pin PDIP Operational Amplifiers - Op Amps JFET Input OP Amp Dual GP �18V 8-Pin PDIP Tube IC, OP AMP, DUAL JFET, DIP8 JFET-Input Operational Amplifier Operational Amplifier Dual 3 MHz DIL-8, TL082, TL082ACP, Texas Instruments Texas Instruments 双 运算放大器, 3MHz, 8针 PDIP |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Operational Amplifiers - Op Amps | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | Standard Package Name | PDIP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423300 |
| Part Status | :082 | Rad Hardened | No |
Electrical
| Gain | 106.02 dB | Slew Rate | 13@±15V V/us |
| Vn at 1kHz | 18 | Output Type | No |
| Offset Drift | 18 | Power - Input | Dual |
| Transistor Type | :High Voltage | CMRR, PSRR (Typ) | 75 dB |
| Current - Output | 1.4mA | Current - Supply | 5.6@±15V mA |
| Voltage - Supply | ±3.5 V | Power Supply Type | Dual |
| Number of Channels | 2 | Number of Elements | 2 |
| Current - Input Bias | 30pA | Current Rating (Max) | Catalog |
| Number of ADCs / DACs | :2 | Voltage - Input (Min) | 3mV |
| Gain Bandwidth Product | 3 MHz | Rail-to-Rail Operation | No |
| Current - Quiescent (Iq) | 2.8 | Current - Input Bias (Max) | 0.0002@±15V uA |
| Input Offset Current (Max) | 0.0001@±15V | Vos (Offset Voltage @ 25C) | 6 |
| Input Noise Current Density | 0.01@±15V pA/rtHz | Input Noise Voltage Density | 18@±15V nV/rtHz |
| Voltage - Supply Span (Typ) | �5/�9/�12/�15 V | Voltage - Input Offset (Max) | 6@±15V mV |
| Voltage - Output Difference (Typ) @ Distance | 106.02 dB | ||
Mechanical
| Width | 6.6(Max) | Weight | 0.015535 oz |
| Bandwidth | :3MHz | Packaging | Tube |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :8 |
| Package / Case | 8PDIP | Package Cooled | PDIP |
| Material Finish | :- | Length - Overall | 10.16(Max) |
| Package Quantity | PDIP | Number of Positions | 8 |
| Shell Size - Insert | 5.08(Max) - 0.51(Min) | Supplier Device Package | 8-PDIP |
Product Info
| Type | General Purpose Amplifier | Series | TL082A |
| DELETED | Compliant | Shutdown | No |
| Software | SLOS081I | Base Unit | :082 |
| Technology | BiFET | Manufacturer | General Purpose Amplifier |
| Amplifier Type | J-FET | Functional Diagram | fbd_slos081i.gif |
| Number of Circuits | 2 | Utilized IC / Part | View |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature Range | :Commercial | Temperature - Test | 0 to 70 |
| Operating Temperature | 0 to 70 °C | ||
