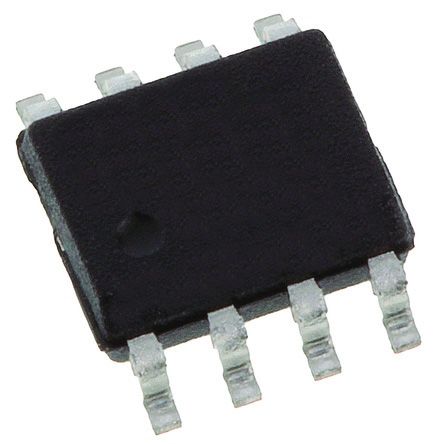

TL072ID
| Manufacturer | |
| Description | OP Amp Dual GP ±18V 8-Pin SOIC Tube IC OPAMP JFET 3MHZ 8SOIC TL072ID, Dual Operational Amplifier 3MHz, 8-Pin SOIC Operational Amplifiers - Op Amps Dual Low Noise BiFET OP Amp Dual GP �18V 8-Pin SOIC Tube IC, OP AMP, DUAL JFET, SMD, SOIC8 Operational amplifier; 3MHz; 7÷36VDC; Channels:2; SO8 Dual Low-Noise JFET-Input General-Purpose Operational Amplifier Operational Amplifier Dual 3 MHz SOIC-8, TL072, TL072ID, Texas Instruments Texas Instruments 双 运算放大器, 3MHz, 8针 SOIC |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-7194-5 | Product Category | Operational Amplifiers - Op Amps |
| Standard Package | Rail / Tube | Factory Pack Quantity | 75 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423300 |
| Part Status | :072 | Rad Hardened | No |
Electrical
| Gain | 106.02 dB | Slew Rate | 13@±15V V/us |
| Vn at 1kHz | 18 | Output Type | No |
| Offset Drift | 18 | Power - Input | Dual |
| Rise Time (Typ) | 13V/μs | Transistor Type | :Low Noise |
| CMRR, PSRR (Typ) | 75 dB | Current - Output | 1.4mA |
| Current - Supply | 5@±15V mA | Voltage - Supply | ±3.5 V |
| Power Supply Type | Dual | Number of Channels | 2 |
| Number of Elements | 2 | Current - Input Bias | 65pA |
| Current Rating (Max) | Catalog | Number of ADCs / DACs | :2 |
| Voltage - Input (Min) | 3mV | Gain Bandwidth Product | 3 MHz |
| Rail-to-Rail Operation | No | Current - Quiescent (Iq) | 2.5 |
| Current - Input Bias (Max) | 0.0002@±15V uA | Input Offset Current (Max) | 0.0001@±15V |
| Vos (Offset Voltage @ 25C) | 10 | Input Noise Current Density | 0.01@±15V pA/rtHz |
| Input Noise Voltage Density | 18@±15V nV/rtHz | Voltage - Supply Span (Typ) | �5/�9/�12/�15 V |
| Frequency Bands (Low / High) | 3MHz | Voltage - Input Offset (Max) | 6@±15V mV |
| Voltage - Output Difference (Typ) @ Distance | 106.02 dB | ||
Mechanical
| Width | 4(Max) | Weight | 0.002561 oz |
| Bandwidth | :3MHz | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8SOIC | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Number of Positions | 8 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 8-SOIC |
Product Info
| Spg | 2500 | Type | General Purpose Amplifier |
| Series | TL072 | DELETED | Compliant |
| Shutdown | No | Software | SLOS080M |
| Base Unit | :072 | Technology | BiFET |
| Manufacturer | Low Noise Amplifier | Amplifier Type | J-FET |
| Number of Units | 5 | Number of Circuits | 2 |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
