TIBPAL20L8-15CNT
| Manufacturer | |
| Description | High Performance Impact PAL Circuits 24-Pin PDIP Tube SPLD - Simple Programmable Logic Devices High-Perf Impact PAL Circuits IC PLD 15NS 24DIP IC, PAL, 12NS, DIP-24 |
| Category |
Business
| Product Category | SPLD - Simple Programmable Logic Devices | Standard Package | Rail / Tube |
| Factory Pack Quantity | 15 | Standard Package Name | PDIP |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85411000 | Rad Hardened | No |
Electrical
| Speed | 15ns | Frequency | 50 MHz |
| Delay Time | 15 ns | Logic Type | TIBPAL20L8 |
| Number of I/O | :6 | Voltage Rating | 4.75 |
| Frequency - Max | 45 MHz | Current - Output | 180 mA |
| Current - Supply | :180mA | Voltage - Supply | 5 V |
| Propagation Delay | :12ns | Program Memory Type | PAL |
| Voltage - Input (Min) | 5V | Voltage - Supply (Min) | 4.75 V |
| Delay Time - Propagation | 15 ns | Propagation Delay tpLH / tpHL (Max) | 15 |
Mechanical
| Width | 7.11(Max) | Weight | 0.061853 oz |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | 24PDIP | Package Cooled | PDIP |
| Material Finish | :- | Length - Overall | 32.04(Max) |
| Package Quantity | PDIP | Number of Positions | 24 |
| Shell Size - Insert | 5.08(Max) - 0.51(Min) | Supplier Device Package | 24-PDIP |
Product Info
| Series | TIBPAL20L8-15C | Function | High Performance Impact PAL Circuits |
| Programmable | Yes | Programmable Type | PAL |
| Printed Circuit Board | 24 | ||
Environmental
| Operating Temperature | 0 to 75 °C | Operating Temperature - Junction | 75C |
Documents & Media
Similar Parts
S-340
OK Industries
Pliers & Tweezers DIP/IC EXTRACT TOOL 8 TO 24 PINS Hand Tools DIP/IC EXTRACT TOOL 8 TO 24 PINS IC EXTRACTION TOOL
1-390261-8
te connectivity / amp
Conn DIP Socket SKT 24 POS 2.54mm Solder ST Thru-Hole Tube DIP Sockets CONN IC SOCKET VERT 24POS TIN 24 way Augat tin plate DIL socket,0.3in IC & Component Sockets 24P ECONOMY TIN Conn DIP Socket SKT 24 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:DIP SocketNumber of Positions = 24Row-to-Row Spacing = 7.62 mmThru HoleMount Style = VerticalSearch Keywords:IC sockets, solderless, NIC, Network Interface Cards, PC Cards, EIA RS-415, MIL-S-83734, dual in-line IC package, DIP SOCKET, 24POS, THROUGH HOLE Socket,DIP;24Pins;DualLeaf;EconomyLadder;0.3In.;PhosphorBronze;Tin/Lead TE Connectivity 垂直 2.54mm 节距 24 路, 通孔 模压引脚 封闭式框架 DIL 插座, 1A
110-13-324-41-001000
Mill-Max

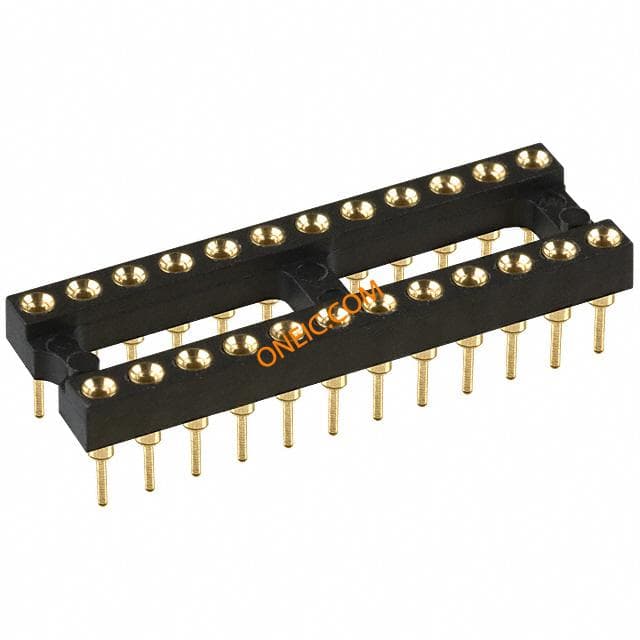

Conn DIP Socket SKT 24 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 24 PIN .300 GOLD Socket; DIP;Open;4-Finger;24 Pos.;Solder;0.3In.;30muIn. Gold;50V;3A;-25 to 85deg IC & Component Sockets 24P GLD PIN GLD CONT DIP SOCKET, 24POS, THROUGH HOLE Socket,DIP;Open;4-Finger;24Pos.;Solder;0.3In.;30muIn.Gold;50V;3A;-25to85deg
