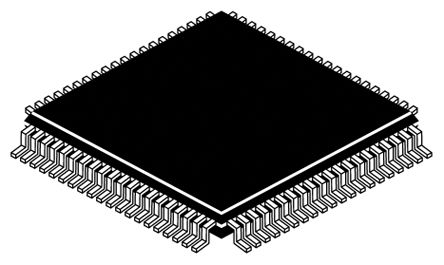

点击放大查看
THS8200PFP
| Manufacturer | |
| Description | DAC 3-CH 11-bit 80-Pin HTQFP EP Video D/A Converter ICs TRIPLE 10-BIT ALL FORMAT VIDEO DAC IC TRPL 10BIT VIDEO DAC 80-HTQFP THS8200PFP, Video DAC, 11bit- Serial (I2C), 80-Pin HTQFP VIDEO DAC, 10BIT, 205MSPS, HTQFP-80 , 11 位 视频数模转换器, 串行 (I2C)接口, 80针 HTQFP封装 Digital to Analog Converters - DAC TRIPLE 10-BIT ALL FORMAT VIDEO DAC |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-15622 | Product Category | Video D/A Converter ICs |
| Standard Package | Trays | Factory Pack Quantity | 96 |
| Standard Package Name | QFP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Interface | Serial (I2C) | Input Type | :Serial |
| Resolution | 11 Bit | Output Type | Voltage |
| INL/DNL (LSB) | ±5 LSB | Power - Input | Analog and Digital |
| Settling Time | 0.0066(Typ) us | Converter Type | Video |
| Data Interface | I²C, Serial | Number of Bits | 10 |
| Data Rate (Max) | 205 Msps | Number of DAC's | 3 |
| Current - Output | :162mA | Voltage - Supply | 3.6 V |
| Distortion Rating | +/- 5 LSB | Number of Outputs | 3 |
| Power Supply Type | Analog and Digital | Resolution (Bits) | :11bit |
| Number of Channels | 3 | Sampling Frequency | :205MSPS |
| Voltage Supply Source | Analog and Digital | Number of Outputs and Type | 3 Voltage, Unipolar |
| Sampling Rate (Per Second) | 205M | Voltage - Supply Span (Typ) | Not Required V |
Mechanical
| Width | 12.2mm | Height | 1.05mm |
| Length | 12.2mm | Weight | 0.012984 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :80 | Package / Case | 80HTQFP EP |
| Package Cooled | HTQFP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 12 | Package Quantity | HTQFP EP |
| Size / Dimension | 12.2 x 12.2 x 1.05mm | Number of Positions | 80 |
| Shell Size - Insert | 1 | Supplier Device Package | 80-HTQFP (12x12) |
Product Info
| Series | THS8200 | Printed Circuit Board | 80 |
| Number of A/D Converters | 3 | ||
Environmental
| Operating Temperature | 0 to 70 °C | Operating Temperature - Junction | 70C |
