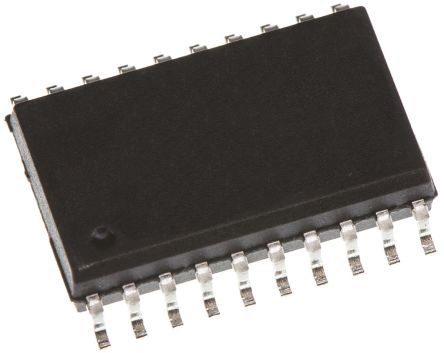

THS6012CDWP
| Manufacturer | |
| Description | ADSL Driver Dual 20-Pin HSOP EP Tube IC LINE DVR 500MA DUAL 20SOPWR Buffers & Line Drivers 500-mA Dual Diff Line Driver DIFF LINE DRIVER, SMD, 6012, HSOP20 500-mA Dual Differential Line Driver 双 ADSL 线路驱动器, 电流反馈放大器拓扑, 差分输出, 20针 SOIC封装 High Speed Operational Amplifiers 500-mA Dual Diff Line Driver |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-2372-5 | Product Category | Buffers & Line Drivers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 25 |
| Standard Package Name | HSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Gain | 1 | Interface | :ADSL |
| Slew Rate | 900@±5V V/us | Output Type | Differential |
| Power - Input | Single/Dual | Settling Time | 70 |
| Vn at Flatband | 1.7 | Current - Output | 26 mA |
| Driver Circuitry | :Differential Line Driver | Voltage - Supply | ±5|±9|±12|±15|12|15|18|24|28 V |
| Distortion Rating | 79 dB | Power Supply Type | Single|Dual |
| Number of Channels | 2 | Current Rating (Max) | Catalog |
| Offset Voltage Drift | 20 | Voltage - Output (Max) | :25V |
| Power Dissipation (Max) | 5800 mW | Current - Input Bias (Max) | 12000 |
| Voltage - Supply (Vcc/Vdd) | 32 | Differential - Input:Output | No |
Mechanical
| Weight | 0.017870 oz | Bandwidth | 140 |
| Packaging | Tube | Termination | :SMD |
| Mounting Type | Surface Mount | -3db Bandwidth | 315 |
| Mounting Style | SMD/SMT | Number of Pins | :20 |
| Package / Case | 20HSOP EP | Package Cooled | HSOP EP |
| Material Finish | :MSL 2 - 1 year | Package Quantity | HSOP EP |
| Number of Positions | 20 | Supplier Device Package | 20-SO PowerPad |
Product Info
| Type | Driver | Series | THS6012 |
| Protocol | DSL | Software | SLOS226F |
| Topology | Current Feedback Amplifier | Base Unit | :6012 |
| Architecture | Current Feedback | Number of Drivers | :2 |
| Functional Diagram | fbd_slos226f.gif | Utilized IC / Part | View |
| Number of Drivers/Receivers | 2 | ||
Environmental
| Operating Temperature | 0°C ~ 70°C | ||
