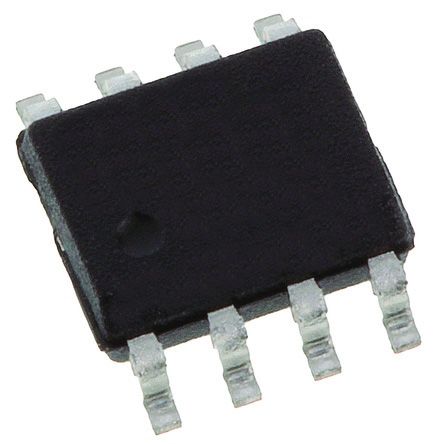

THS4502CD
| Manufacturer | |
| Description | SP Amp DIFF AMP Single ±7.5V/15V 8-Pin SOIC Tube IC OPAMP DIFF 300MHZ 8SOIC Special Purpose Amplifiers Hi-Sp Fully-Diff Amp SP Amp DIFF AMP Single �7.5V/15V 8-Pin SOIC Tube High-Speed Fully-Differential Amplifiers 差分放大器, 5 V, 300MHz, 8引脚 SOIC封装 Differential Amplifiers Hi-Sp Fully-Diff Amp |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Differential Amplifiers | Product Category | Special Purpose Amplifiers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 75 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Gain | 54 dB | PSRR | 72 dB |
| Slew Rate | 2800 V/µs | Output Type | Differential |
| Power - Input | Single/Dual | Power - Rated | 1.02 W |
| Settling Time | 6.3 | Vn at Flatband | 6 |
| Input Impedance | 0.05MΩ | CMRR, PSRR (Typ) | 74 dB |
| Current - Output | 23mA | Current - Supply | 23 mA |
| Voltage - Supply | 4.5 V | Power Supply Type | Single|Dual |
| Number of Channels | 1 | Number of Elements | 1 |
| Resistance - Input | 0.05 MOhm | Current - Input Bias | 4µA |
| Current Rating (Max) | Catalog | Offset Voltage Drift | 10 |
| Voltage - Input (Min) | 54(Typ) dB | Current - Output (Typ) | 120 mA |
| Gain Bandwidth Product | 300 MHz | Rail-to-Rail Operation | No |
| Power - Average Forward | 1020 mW | Power Dissipation (Max) | 1020 mW |
| Current - Quiescent (Iq) | 34 | Input Logic Level - High | 2.5mV |
| Current - Input Bias (Max) | 5200 | Current - Output / Channel | 120mA |
| Voltage - Supply (Vcc/Vdd) | 15 | Voltage - Supply Span (Typ) | �5 V |
| Voltage - Input Offset (Max) | 2.4@5V | Voltage - Supply, Dual (V+/-) | ±5V |
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 4.9mm | Weight | 0.002677 oz |
| Bandwidth | 370 | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| -3db Bandwidth | 370MHz | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8SOIC |
| Package Cooled | SOIC | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Size / Dimension | 4.9 x 3.91 x 1.58mm |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Type | Differential Amplifier | Series | THS4502 |
| Software | SLOS352E | Architecture | Voltage Feedback Fully Differential |
| Manufacturer | Texas Instruments | Amplifier Type | Differential |
| Development Kit | THS4502EVM | Functional Diagram | alt_slos352e.gif |
| Number of Circuits | 1 | Utilized IC / Part | View |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | 0 to 70 °C |
Documents & Media
PDF Document
