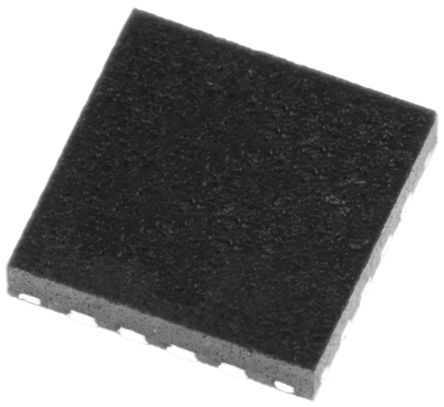

THS4303RGTT
| Manufacturer | |
| Description | SP Amp Fixed Gain Amp Single ±2.5V/5V 16-Pin VQFN EP T/R IC OPAMP GP 18GHZ 16QFN High Speed Operational Amplifiers Wideband Fixed Gain Amplifier SP Amp Fixed Gain Amp Single ?2.5V/5V 16-Pin VQFN EP T/R IC, OP-AMP GP 18GHZ SGL WB 16VQFN Wideband Fixed-Gain Amplifier 音频放大器, 18MHz, 16针 QFN封装 Video Amplifiers Wideband Fixed Gain Amplifier |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Voltage Feedback Amplifier | Other Names | 296-16658-2 |
| Product Category | High Speed Operational Amplifiers | Standard Package | Cut Tape, Tape & Reel |
| Factory Pack Quantity | 250 | Standard Package Name | QFN |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Gain | 5.25 dB | PSRR | 54 dB |
| Slew Rate | 5500 V/µs | Output Type | No |
| Power - Input | Single/Dual | Power - Rated | 2.53 W |
| Vn at Flatband | 2.8 | Transistor Type | :Wideband |
| CMRR, PSRR (Typ) | 52 dB | Current - Output | 34mA |
| Voltage - Supply | 3 V | Power Supply Type | Single|Dual |
| Number of Channels | 1 | Number of Elements | 1 |
| Resistance - Input | 1.6 MOhm | Current - Input Bias | 7µA |
| Current Rating (Max) | Catalog | Offset Voltage Drift | 20 |
| Number of ADCs / DACs | :1 | Voltage - Input (Min) | 20 dB |
| Gain Bandwidth Product | 18 MHz | Rail-to-Rail Operation | No |
| Power Dissipation (Max) | 1650 mW | Current - Quiescent (Iq) | 48 |
| Current - Input Bias (Max) | 15000 | Current - Output / Channel | 180mA |
| Voltage - Supply (Vcc/Vdd) | 5 | Voltage - Input Offset (Max) | 4.25@5V |
Mechanical
| Width | 3.15(Max) | Weight | 0.000850 oz |
| Bandwidth | :1.8GHz | Packaging | Tape and Reel |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| -3db Bandwidth | 1.8GHz | Mounting Style | SMD/SMT |
| Number of Pins | :16 | Package / Case | 16VQFN EP |
| Package Cooled | VQFN EP | Material Finish | :MSL 2 - 1 year |
| Length - Overall | 3.15(Max) | Package Quantity | VQFN EP |
| Number of Positions | 16 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 16-QFN (3x3) | ||
Product Info
| Type | Fixed Gain Amplifier | Series | THS4303 |
| Software | SLOS421B | Base Unit | :4303 |
| Amplifier Type | General Purpose | Number of Circuits | 1 |
| Utilized IC / Part | View | Printed Circuit Board | 16 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
Documents & Media
PDF Document
