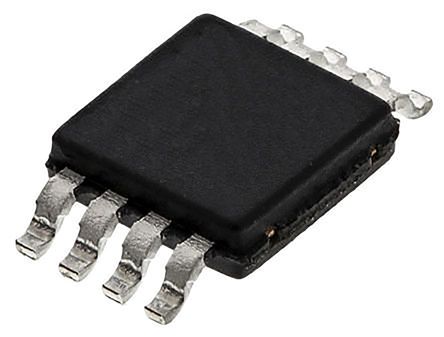

THS4131CDGK
| Manufacturer | |
| Description | SP Amp DIFF AMP Single ±16.5V/33V 8-Pin VSSOP Tube IC OPAMP DIFF 225MHZ 8VSSOP Differential Amplifiers Fully Differential I/O Low Noise Amp SP Amp DIFF AMP Single ?16.5V/33V 8-Pin VSSOP Tube Fully Differential Input/Output Low Noise Amplifier 差分放大器, 5 V, 225MHz, 8引脚 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Differential Amplifiers | Product Category | Differential Amplifiers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 80 |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Gain | 78 dB | PSRR | 73 dB |
| Slew Rate | 52 V/µs | Output Type | Differential |
| Power - Input | Single/Dual | Power - Rated | 0.385 W |
| Settling Time | 78 | Vn at Flatband | 1.3 |
| Input Impedance | 34MΩ | CMRR, PSRR (Typ) | 80 dB |
| Current - Output | 12.3mA | Current - Supply | 12.3 mA |
| Voltage - Supply | 4 V | Power Supply Type | Single|Dual |
| Number of Channels | 1 | Number of Elements | 1 |
| Resistance - Input | 34 MOhm | Current - Input Bias | 2µA |
| Current Rating (Max) | Catalog | Offset Voltage Drift | 4.5 |
| Voltage - Input (Min) | 78(Typ) dB | Current - Output (Typ) | 440 mA |
| Gain Bandwidth Product | 225 MHz | Rail-to-Rail Operation | No |
| Power - Average Forward | 385 mW | Power Dissipation (Max) | 385 mW |
| Current - Quiescent (Iq) | 16 | Input Logic Level - High | 2mV |
| Current - Input Bias (Max) | 6000 | Current - Output / Channel | 85mA |
| Voltage - Supply (Vcc/Vdd) | 30 | Voltage - Supply Span (Typ) | �15 V |
| Voltage - Input Offset (Max) | 2@±5V | Voltage - Supply, Dual (V+/-) | ±15V |
Mechanical
| Width | 3mm | Height | 0.97mm |
| Length | 3mm | Weight | 0.000822 oz |
| Bandwidth | 150 | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| -3db Bandwidth | 150MHz | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8VSSOP |
| Package Cooled | VSSOP | Length - Overall | 3.1(Max) |
| Package Quantity | VSSOP | Size / Dimension | 3 x 3 x 0.97mm |
| Number of Positions | 8 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 8-VSSOP | ||
Product Info
| Type | Differential Amplifier | Series | THS4131 |
| Function | Y | Software | SLOS318H |
| Architecture | Fully Differential Voltage Feedback | Manufacturer | Texas Instruments |
| Amplifier Type | Differential | Development Kit | THS4131EVM |
| Functional Diagram | alt_slos318h.gif | Number of Circuits | 1 |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | 0 to 70 °C |
