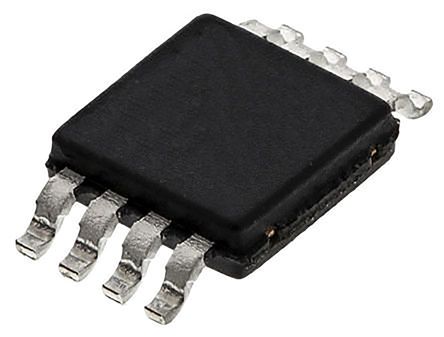

THS4082IDGN
| Manufacturer | |
| Description | OP Amp Dual Volt Fdbk ±16.5V/33V 8-Pin HTSSOP EP Tube High Speed Operational Amplifiers 175-MHz Low-Power Vltg-Feedback Dual OP Amp Dual Volt Fdbk ±16.5V/33V 8-Pin HVSSOP EP Tube IC OPAMP VFB 175MHZ 8MSOP OP Amp Dual Volt Fdbk �16.5V/33V 8-Pin HTSSOP EP Tube 175-MHz Low-Power Voltage-Feedback Amplifier, Dual Texas Instruments 双 运算放大器, 100MHz, 10 → 28 V, 8针 MSOP |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Voltage Feedback Amplifier | Product Category | High Speed Operational Amplifiers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 80 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Gain | 84.08 dB | PSRR | 79 dB |
| Frequency | 10nV/√Hz | Slew Rate | 170@±5V V/us |
| Output Type | No | Power - Input | Single/Dual |
| Power - Rated | 2.14 W | Settling Time | 43 ns |
| Vn at Flatband | 10.2 | Conversion Type | 170V/µs |
| CMRR, PSRR (Typ) | 84 dB | Current - Output | 8.4 mA |
| Current - Supply | 7.4@±5V mA | Voltage - Supply | 9 V |
| Power Supply Type | Single|Dual | Number of Channels | 2 |
| Number of Elements | 2 | Current - Input Bias | 1.2µA |
| Current Rating (Max) | Catalog | Offset Voltage Drift | 15 |
| Typical Voltage Gain | 84.08 dB | Voltage - Input (Min) | 7 mV |
| Gain Bandwidth Product | 100 MHz | Rail-to-Rail Operation | No |
| Power - Average Forward | 2140 mW | Power Dissipation (Max) | 2140 mW |
| Current - Quiescent (Iq) | 5 | Current - Input Bias (Max) | 6@±5V uA |
| Current - Output / Channel | 85mA | Input Offset Current (Max) | 0.25@±5V |
| Voltage - Supply (Vcc/Vdd) | 30 | Input Noise Current Density | 0.7@±5V pA/rtHz |
| Input Noise Voltage Density | 10@±5V nV/rtHz | Voltage - Supply Span (Typ) | �5/�9/�12/�15 V |
| Voltage - Input Offset (Max) | 7@±5V mV | Voltage - Supply, Dual (V+/-) | ±12 V, ±15 V, ±5 V, ±9 V |
| Common Mode Transient Immunity (Min) | 84 dB | Voltage - Output Difference (Typ) @ Distance | 84.08 dB |
Mechanical
| Width | 3mm | Height | 1.02mm |
| Length | 3mm | Weight | 0.000861 oz |
| Bandwidth | 175 | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| -3db Bandwidth | 175MHz | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8HTSSOP EP |
| Package Cooled | HTSSOP EP | Length - Overall | 3.1(Max) |
| Package Quantity | HVSSOP EP | Size / Dimension | 3 x 3 x 1.02mm |
| Number of Positions | 8 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 8-MSOP-PowerPad | ||
Product Info
| Type | Voltage Feedback Amplifier | Series | THS4082 |
| Function | Y | Shutdown | No |
| Software | SLOS274D | Topology | Voltage Feedback |
| Technology | BiCOM | Architecture | Voltage Feedback |
| Manufacturer | High Speed Amplifier | Amplifier Type | Voltage Feedback |
| Number of Circuits | 2 | Utilized IC / Part | View |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
