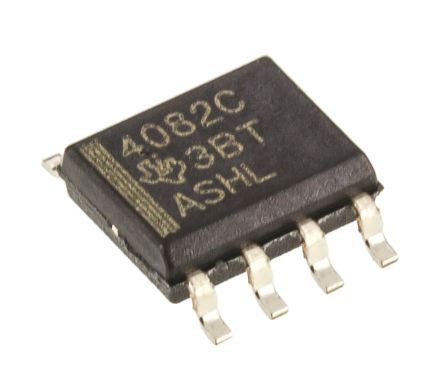

THS4082CD
| Manufacturer | |
| Description | OP Amp Dual Volt Fdbk ±16.5V/33V 8-Pin SOIC Tube IC OPAMP VFB 175MHZ 8SOIC High Speed Operational Amplifiers Dual 175MHz OP Amp Dual Volt Fdbk �16.5V/33V 8-Pin SOIC Tube 175-MHz Low-Power Voltage-Feedback Amplifier, Dual Texas Instruments 双 运算放大器, 100MHz, 10 → 28 V, 8针 SOIC |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Voltage Feedback Amplifier | Other Names | 296-7550-5 |
| Product Category | High Speed Operational Amplifiers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 75 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Gain | 84.08 dB | PSRR | 79 dB |
| Frequency | 10nV/√Hz | Slew Rate | 170@±5V V/us |
| Output Type | No | Power - Input | Single/Dual |
| Power - Rated | 0.74 W | Settling Time | 43 ns |
| Vn at Flatband | 10.2 | Conversion Type | 170V/µs |
| CMRR, PSRR (Typ) | 84 dB | Current - Output | 3.4mA |
| Current - Supply | 7.4@±5V mA | Voltage - Supply | 9 V |
| Power Supply Type | Single|Dual | Number of Channels | 2 |
| Number of Elements | 2 | Current - Input Bias | 1.2µA |
| Current Rating (Max) | Catalog | Offset Voltage Drift | 15 |
| Typical Voltage Gain | 84.08 dB | Voltage - Input (Min) | 1mV |
| Gain Bandwidth Product | 100 MHz | Rail-to-Rail Operation | No |
| Power - Average Forward | 740 mW | Power Dissipation (Max) | 740 mW |
| Current - Quiescent (Iq) | 5 | Current - Input Bias (Max) | 6@±5V uA |
| Current - Output / Channel | 85mA | Input Offset Current (Max) | 0.25@±5V |
| Voltage - Supply (Vcc/Vdd) | 30 | Input Noise Current Density | 0.7@±5V pA/rtHz |
| Input Noise Voltage Density | 10@±5V nV/rtHz | Voltage - Supply Span (Typ) | �5/�9/�12/�15 V |
| Voltage - Input Offset (Max) | 7@±5V mV | Voltage - Supply, Dual (V+/-) | ±12 V, ±15 V, ±5 V, ±9 V |
| Voltage - Output Difference (Typ) @ Distance | 84.08 dB | ||
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 4.9mm | Weight | 0.002677 oz |
| Bandwidth | 175 | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| -3db Bandwidth | 175MHz | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8SOIC |
| Package Cooled | SOIC | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Size / Dimension | 4.9 x 3.91 x 1.58mm |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Type | Voltage Feedback Amplifier | Series | THS4082 |
| Shutdown | No | Software | SLOS274D |
| Topology | Voltage Feedback | Technology | BiCOM |
| Architecture | Voltage Feedback | Manufacturer | High Speed Amplifier |
| Amplifier Type | Voltage Feedback | Number of Circuits | 2 |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | 0 to 70 °C |
