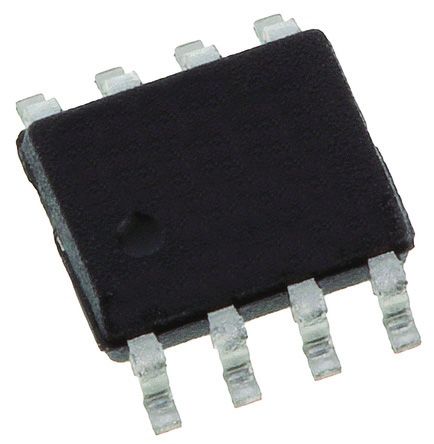

THS4042CD
| Manufacturer | |
| Description | OP Amp Dual Volt Fdbk ±16V/32V 8-Pin SOIC Tube IC OPAMP VFB 165MHZ 8SOIC High Speed Operational Amplifiers Dual 165MHz OP Amp Dual Volt Fdbk �16V/32V 8-Pin SOIC Tube OP AMP, DUAL 165MHZ, 4042, SOIC8 165-MHz C-Stable Voltage-Feedback Amplifier, Dual Texas Instruments 双 运算放大器, 10 → 28 V, 8针 SOIC |
| Category |
Business
| Product | Voltage Feedback Amplifier | Other Names | 296-7530-5 |
| Product Category | High Speed Operational Amplifiers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 75 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423300 |
| Part Status | :4042 | Rad Hardened | No |
Electrical
| Gain | 76 dB | PSRR | 75 dB |
| Slew Rate | 325@±5V V/us | Output Type | No |
| Power - Input | Single/Dual | Power - Rated | 0.74 W |
| Settling Time | 95 ns | Vn at Flatband | 14 |
| Transistor Type | :High Speed | CMRR, PSRR (Typ) | 80 dB |
| Current - Output | 8mA | Current - Supply | 17@±5V mA |
| Voltage - Supply | 9 V | Power Supply Type | Single|Dual |
| Number of Channels | 2 | Number of Elements | 2 |
| Current - Input Bias | 2.5µA | Current Rating (Max) | Catalog |
| Offset Voltage Drift | 10 | Number of ADCs / DACs | :2 |
| Voltage - Input (Min) | 2.5mV | Gain Bandwidth Product | 60 MHz |
| Rail-to-Rail Operation | No | Power Dissipation (Max) | 740 mW |
| Current - Quiescent (Iq) | 11 | Current - Input Bias (Max) | 6@±5V uA |
| Current - Output / Channel | 100mA | Input Offset Current (Max) | 0.25@±5V |
| Voltage - Supply (Vcc/Vdd) | 30 | Input Noise Current Density | 0.9@±5V pA/rtHz |
| Input Noise Voltage Density | 14@±5V nV/rtHz | Voltage - Supply Span (Typ) | �5/�9/�12/�15 V |
| Voltage - Input Offset (Max) | 10@±5V mV | Voltage - Output Difference (Typ) @ Distance | 76 dB |
Mechanical
| Width | 4(Max) | Weight | 0.002677 oz |
| Bandwidth | :165MHz | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| -3db Bandwidth | 165MHz | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8SOIC |
| Package Cooled | SOIC | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 5(Max) | Package Quantity | SOIC |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Type | Voltage Feedback Amplifier | Series | THS4042 |
| Shutdown | No | Software | SLOS237B |
| Base Unit | :4042 | Technology | BiCOM |
| Architecture | Voltage Feedback | Manufacturer | High Speed Amplifier |
| Amplifier Type | Voltage Feedback | Number of Circuits | 2 |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
Environmental
| Temperature Range | :Commercial | Temperature - Test | 0 to 70 |
| Operating Temperature | 0 to 70 °C | ||
