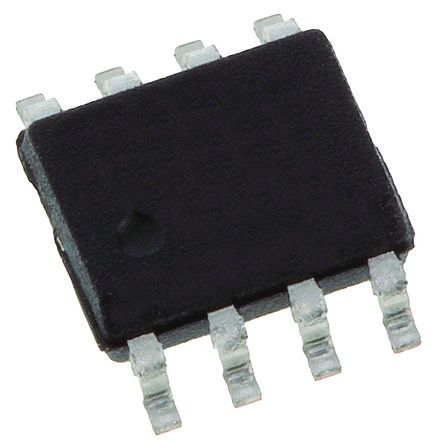

THS4012ID
| Manufacturer | |
| Description | OP Amp Dual Volt Fdbk ±16.5V/33V 8-Pin SOIC Tube IC OPAMP VFB 290MHZ 8SOIC High Speed Operational Amplifiers Dual 290MHz OP Amp Dual Volt Fdbk ?16.5V/33V 8-Pin SOIC Tube 290-MHz Dual Low-Distortion Voltage-Feedback Amplifier, Dual Texas Instruments 双 运算放大器, 270MHz, 10 → 28 V, 8针 SOIC |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Operational Amplifiers | Other Names | 296-7513-5 |
| Product Category | High Speed Operational Amplifiers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 75 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Gain | 81.58 dB | PSRR | 75 dB |
| Frequency | 7.5nV/√Hz | Slew Rate | 260@±5V V/us |
| Output Type | No | Power - Input | Single/Dual |
| Power - Rated | 0.74 W | Settling Time | 37 |
| Vn at Flatband | 7.5 | Conversion Type | 260V/µs |
| CMRR, PSRR (Typ) | 90 dB | Current - Output | 7.8mA |
| Current - Supply | 17@±5V mA | Voltage - Supply | 9 V |
| Power Supply Type | Single|Dual | Number of Channels | 2 |
| Number of Elements | 2 | Current - Input Bias | 2µA |
| Current Rating (Max) | Catalog | Offset Voltage Drift | 15 |
| Typical Voltage Gain | 81.58 dB | Voltage - Input (Min) | 1mV |
| Gain Bandwidth Product | 270 MHz | Rail-to-Rail Operation | No |
| Power - Average Forward | 740 mW | Power Dissipation (Max) | 740 mW |
| Current - Quiescent (Iq) | 11 | Current - Input Bias (Max) | 6@±5V uA |
| Current - Output / Channel | 110mA | Input Offset Current (Max) | 0.25@±5V |
| Voltage - Supply (Vcc/Vdd) | 30 | Input Noise Current Density | 1@±5V pA/rtHz |
| Input Noise Voltage Density | 7.5@±5V nV/rtHz | Voltage - Supply Span (Typ) | �5/�9/�12/�15 V |
| Voltage - Input Offset (Max) | 6@±5V mV | Voltage - Supply, Dual (V+/-) | ±12 V, ±15 V, ±5 V, ±9 V |
| Voltage - Output Difference (Typ) @ Distance | 81.58 dB | ||
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 4.9mm | Weight | 0.002677 oz |
| Bandwidth | 290 | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| -3db Bandwidth | 290MHz | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8SOIC |
| Package Cooled | SOIC | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Size / Dimension | 4.9 x 3.91 x 1.58mm |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Type | Voltage Feedback Amplifier | Series | THS4012 |
| Shutdown | No | Software | SLOS216E |
| Technology | BiCOM | Architecture | Voltage Feedback |
| Manufacturer | High Speed Amplifier | Amplifier Type | Voltage Feedback |
| Number of Circuits | 1 | Utilized IC / Part | View |
| Printed Circuit Board | 8 | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
