TFP410PAP
| Manufacturer | |
| Description | Digital Transmitter 3TX 64-Pin HTQFP EP Tray IC TRANSMITTER DIGITAL 64-HTQFP TFP410PAP, Video Encoder 3.3V, 64-Pin HTQFP, HTQFP EP IC, TRANSMITTER, 165MHZ, PANELBUS PanelBus DVI Transmitter 165MHz Audio/Video IC HTQFP-64, TFP410, TFP410PAP, Texas Instruments 视频编码器, 3.3 V, 64针 HTQFP封装 Display Interface IC PanelBus DVI Transmitter 165MHz |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-12666 | Standard Package | Trays |
| Standard Package Name | QFP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Interface | :I2C, Serial | Modulation | :- |
| Number of I/O | :32 | Power - Input | Single |
| Voltage Rating | 3.3 V | Data Rate (Max) | :495Mbps |
| Frequency - Max | :165MHz | Frequency - Min | :25MHz |
| Frequency Range | :25MHz to 165MHz | Current - Output | 250 mA |
| Current - Supply | 250 mA | Driver Circuitry | :Transmitter |
| Number of Inputs | 24 | Voltage - Supply | 3 V |
| Power Supply Type | Single | Number of Channels | :3 |
| Current - Input Bias | 250 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 25 to 165 | Voltage - Supply Span (Typ) | Not Required V |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 10mm | Height | 1mm |
| Length | 10mm | Weight | 0.31 |
| Packaging | Tray | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Number of Pins | :64 | Package / Case | 64HTQFP EP |
| Package Cooled | HTQFP, HTQFP EP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 10.2(Max) | Package Quantity | HTQFP EP |
| Size / Dimension | 10 x 10 x 1mm | Number of Positions | 64 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 64-HTQFP (10x10) |
Product Info
| Type | Digital Transmitter | DELETED | Compliant |
| Software | SLDS145C | Base Unit | :410 |
| Application | :PC and Consumer Electronics Industry | Applications | :- |
| Pattern Number | Y | Control Interface | :I2C, Serial |
| Number of Drivers | :6 | Functional Diagram | fbd_slds145c.gif |
| Utilized IC / Part | View | Number of Receivers | :24 |
| Other Specifications | Transmitter | Printed Circuit Board | 64 |
| Number of Transmitters | 3 | Number of Drivers/Receivers | 3/0 |
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | -55°C ~ 125°C |
| Operating Temperature - Junction | 70C | ||
Documents & Media
Similar Parts

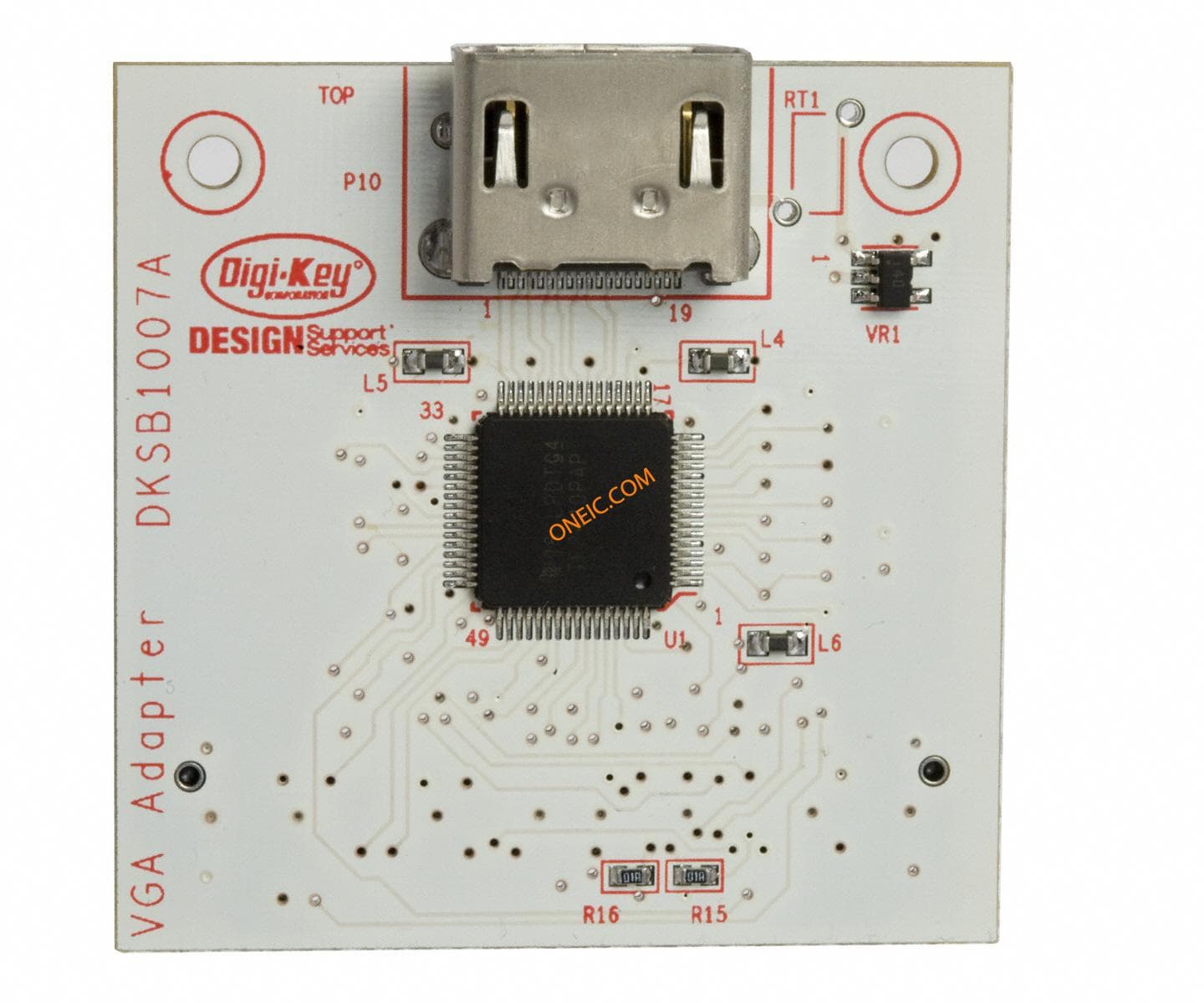

DKSB1007A
