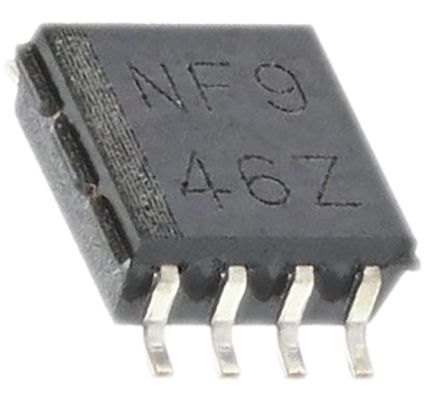

TCA9406DCTR
| Manufacturer | |
| Description | 2 BIT Bidirectional 1-MHz I2C BUS and SMBus Voltage Level Translator 8-Pin SSOP T/R IC V-LEVEL XLATR I2C/SMBUS 8SM TCA9406DCTR, Voltage Level Translator, 3-State 1.65 to 3.6, 2.3 to 5.5V 8-Pin SSOP IC, V-LEVEL XLATR I2C/SMBUS, 8SM TCA9406 Dual Bidirectional 1-MHz I2C-BUS and SMBus Voltage Level-Translator 电压电平移位器, 三态输出, 1.65 → 3.6 V，2.3 → 5.5 V, 8针 SSOP封装 Translation - Voltage Levels Dual Bidirec 1MHz Vltg Lev-Trans |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-28108-2 | Standard Package | Tape & Reel |
| Standard Package Name | SSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Data Rate | 24Mbps | Interface | :I2C |
| Input Type | Voltage | Output Type | Voltage |
| Number of Bits | 2 | Voltage Rating | 1.65 V, 2.3 V |
| Frequency - Max | 1000 | Voltage - Supply | 1.65 V ~ 3.6 V, 2.3 V ~ 5.5 V |
| Number of Outputs | 2 | Propagation Delay | 15pF |
| Number of Channels | 2 | Number of Elements | 1 |
| Sampling Frequency | 1 | Current Rating (Max) | Catalog |
| Voltage - Supply (Min) | 3.6 V, 5.5 V | Propagation Delay (Max) | 4.4ns |
| Current - Output High, Low | -50mA | Number of Outputs and Type | 1 |
| Differential - Input:Output | No/No | Max Propagation Delay @ V, Max CL | 260ns |
Mechanical
| Width | 2.9mm | Height | 1.2mm |
| Length | 3.15mm | Weight | 0.00027 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Number of Pins | :8 |
| Package / Case | 8SSOP | Package Cooled | SSOP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 3.15(Max) |
| Package Quantity | SSOP | Size / Dimension | 3.15 x 2.9 x 1.2mm |
| Number of Positions | 8 | Shell Size - Insert | 1.2(Max) |
| Supplier Device Package | SM8 | ||
Product Info
| Features | Enable Pin Open-Drain I/O Type 5V Tolerant I/O Push-Pull I/O Type | Function | Translator, Bidirectional, Open Drain |
| Software | SCPS221C | Base Unit | :9406 |
| Application | :I2C Bus & SMBus Systems Applications | Pattern Number | Y |
| Functional Diagram | fbd_scps221c.gif | Utilized IC / Part | View |
| Other Specifications | N/A | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
