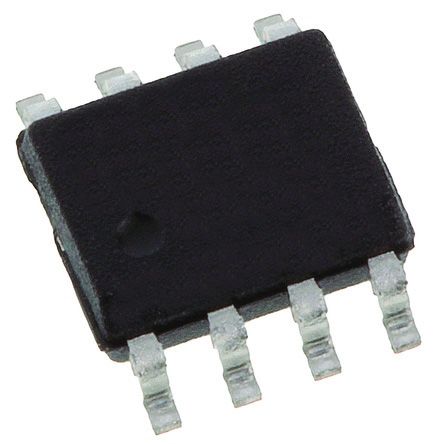

SN75LBC176AD
| Manufacturer | |
| Description | Single Transmitter/Receiver RS-485 8-Pin SOIC Tube RS-485 Interface IC Diff Bus Trans IC DIFF BUS TRANSCEIVER 8-SOIC SN75LBC176AD, Line Transceiver, ISO 8482:1987-E 30Mbit/s Differential, 5V, 8-Pin SOIC DIFF TRANSCEIVER, 75LBC176, SOIC8 Differential Bus Transceiver Logic IC 3-State / Differential / Transceiver SO-8, SN75LBC176, SN75LBC176AD, Texas Instruments Texas Instruments 10MBps 线路收发器, RS-485接口, 差分接收器信号, 5 V, 8针 SOIC封装 |
| Category |
Business
| Other Names | 296-6873-5 | Product Category | RS-485 Interface IC |
| Standard Package | Rail / Tube | Factory Pack Quantity | 75 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | :75LBC176 | Rad Hardened | No |
| Fault Protection | -10 to 15 | ||
Electrical
| Data Rate | 30 Mbps | Interface | EIA/TIA-485-A|ISO 8482:1987-E |
| Baud Rates | 30 | Drive Type | 3-State |
| Fail Short | Open | Input Signal | Differential |
| Signal Types | Differential | Power - Input | Single |
| Isolated Power | No | Data Rate (Max) | Multipoint |
| Current - Output | 8.5 mA | Current - Supply | 15 |
| Driver Circuitry | :Differential Bus | Number of Inputs | 1 |
| Voltage - Supply | 5 V | Number of Outputs | 1 |
| Power Supply Type | Single | Receiver Hysteresis | 50mV |
| Current - Input Bias | 15 | Current Rating (Max) | Catalog |
| Voltage - Supply Span (Typ) | Not Required V | Number of Receivers per Line | 32 |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 4.9mm | Weight | 0.002561 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8SOIC | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Size / Dimension | 4.9 x 3.91 x 1.58mm |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Type | Transceiver | Duplex | Half |
| Series | SN75LBC176A | DELETED | Compliant |
| Function | Line Transceiver | Protocol | RS485 |
| Shutdown | Yes | Software | SLLS376D |
| Base Unit | :75 | Communications | RS-485 |
| Number of Nodes | 32 | Number of Drivers | 1 |
| Utilized IC / Part | View | Number of Receivers | 1 |
| Printed Circuit Board | 8 | Number of Transmitters | 1 |
| Number of Drivers/Receivers | 1/1 | Number of Transmitters/Receivers | 1 |
Environmental
| Temperature Range | :Commercial | Temperature - Test | 0 to 70 |
| Operating Temperature | 0 C to + 70 C | ||
