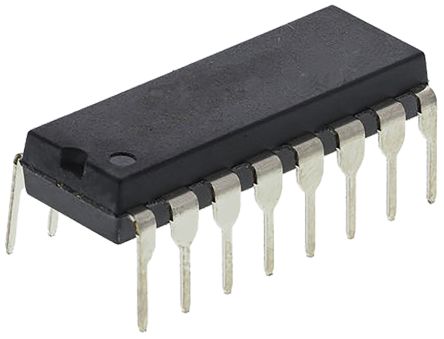

SN75175N
| Manufacturer | |
| Description | Quad Receiver RS-422/RS-423/RS-485 16-Pin PDIP Tube RS-422/RS-485 Interface IC Quad Diff Line Rec IC QUAD DIFF LINE RECEIVER 16DIP SN75175N, Quad Line Receiver, RS-485, RS-422, V.11, X.27 10Mbit/s Differential 5V 16-Pin PDIP LINE RECEIVER QUAD RS485/422/423 Line receiver; RS422 / RS485; 10Mbps; No.of rec:4; DIP16; 5VDC Quadruple Differential Line Receiver Interface IC RS422/485 DIL-16, SN75175, SN75175N, Texas Instruments , 四 EIA/TIA-422-B，EIA/TIA-423-B，EIA/TIA-485，RS-422，RS-423，RS-423-B，RS-485，V.10，V.11，X.26，X.27 线路接收器, 10MBps |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | RS-422/RS-485 Interface IC | Standard Package | Rail / Tube |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | Part Status | :75175 |
| Rad Hardened | No | Fault Protection | -10 to 15 |
Electrical
| Data Rate | 10 Mbps | Interface | EIA/TIA-422-B|EIA/TIA-423-B|EIA/TIA-485|RS-423-B|RS-485|V.10|V.11|X.26|X.27 |
| Baud Rates | 10 | Drive Type | 3-State |
| Fail Short | None | Input Signal | Differential |
| Signal Types | Not Required | Power - Input | Single |
| Isolated Power | No | Data Rate (Max) | Multidrop|Multipoint |
| Current - Output | 70 mA | Driver Circuitry | :Quad Differential RS-422 / RS-485 |
| Number of Inputs | 4 | Voltage - Supply | 5 V |
| Number of Outputs | 0 | Power Supply Type | Single |
| Propagation Delay | :22ns | Number of Channels | :4 |
| Receiver Hysteresis | RS-422|RS-423|RS-485 | Current - Input Bias | 70 |
| Current Rating (Max) | Catalog | Voltage - Supply Span (Typ) | Not Required V |
| Number of Receivers per Line | 10 (RS422), 10 (RS423), 32 (RS485) | Common Mode Transient Immunity (Min) | -7 to 12 |
Mechanical
| Width | 6.35mm | Height | 4.57mm |
| Length | 19.3mm | Weight | 0.033570 oz |
| Packaging | Tube | Case Color | :DIP |
| Termination | :Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :16 |
| Package / Case | 16PDIP | Package Cooled | PDIP |
| Material Finish | :- | Package Quantity | 50 |
| Size / Dimension | 19.3 x 6.35 x 4.57mm | Number of Positions | 16 |
| Supplier Device Package | 16-PDIP | ||
Product Info
| Spg | 50 | Type | Receiver |
| Duplex | Half | Series | SN75175 |
| DELETED | Compliant | Function | Line Receiver |
| Protocol | RS422, RS423, RS485 | Software | SLLS145C |
| Base Unit | :75175 | Number of Nodes | 32 |
| Number of Units | 1 | Number of Drivers | :0 |
| Functional Diagram | alt_slls145c.gif | Utilized IC / Part | View |
| Number of Receivers | 4 | Number of Transmitters | Not Required |
| Number of Drivers/Receivers | 0/4 | Number of Transmitters/Receivers | Not Required |
Environmental
| Temperature Range | :Commercial | Temperature - Test | 0 to 70 |
| Operating Temperature | + 70 C | ||
