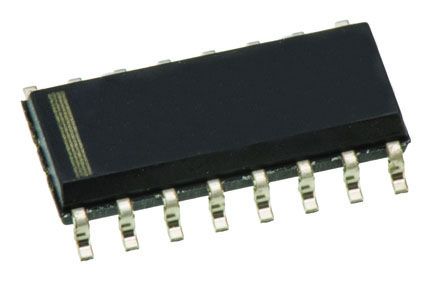

SN74S1051D
| Manufacturer | |
| Description | Diode Schottky 7V 0.17A 16-Pin SOIC Tube IC 12-BIT BUS TERM ARRAY16-SOIC Schottky Diodes & Rectifiers 12-Bit Schottky Barrier Diode 12-Bit Schottky Barrier Diode Bus-Termination Array Texas Instruments 肖特基 二极管, 170mA 7V 16ns, 16针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Schottky Diodes | Other Names | 296-3849-5 |
| Product Category | Schottky Diodes & Rectifiers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 40 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Voltage | 5 | Logic Type | Schottky Barrier Diode Bus-Termination Array |
| Current - Test | 5 uA | Number of Bits | 12 |
| Rectifier Type | Schottky Diode | Voltage - Supply | 1.3@0.05A V |
| Capacitance @ Vr, F | 16 pF | LED Forward Voltage | 1.3 |
| Frequency - Output 1 | 50 | Power Dissipation (Max) | 625 mW |
| Voltage Regulation - Load | 7 V | Reverse Recovery Time (trr) | 16 ns |
| Current - Peak Pulse (8/20us) | 1 A | Current - Average Rectified (Io) | 0.17 A |
| Voltage - Reverse Standoff (Typ) | 7 V | Propagation Delay tpLH / tpHL (Max) | 16 |
| Current - Continuous Drain (Id) @ 25degC | 50 mA | ||
Mechanical
| Width | 4(Max) | Weight | 0.004998 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 16SOIC | Package Cooled | SOIC |
| Length - Overall | 10(Max) | Package Quantity | SOIC |
| Number of Positions | 16 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 16-SOIC N | ||
Product Info
| Type | Schottky Diode | Series | SN74S1051 |
| DELETED | Compliant | Software | SDLS018B |
| Configuration | Array 24 | RF Family/Standard | S |
| Utilized IC / Part | View | Printed Circuit Board | 16 |
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | 0 to 70 °C |
