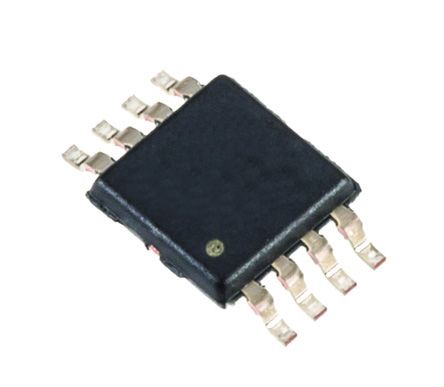

SN74LVC2G66DCUT
| Manufacturer | |
| Description | Analog Switch Dual SPST 8-Pin VSSOP T/R Analog Switch ICs DUAL ANALOG SWITCH IC SWITCH DUAL 1X1 US8 LOGIC, DUAL BI-LAT ANLG SWTCH, 8VSSOP Dual Analog Switch Texas Instruments 模拟单刀单掷开关, 双单刀单掷, 3 V 5 V电源电压, 8针 VSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Analog Switch ICs | Standard Package | Tape & Reel |
| Factory Pack Quantity | 250 | Standard Package Name | SSOP |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Circuit | 2 x SPST - NO | Channels | 2 |
| Logic Type | :- | Output Type | :- |
| Input Signal | Yes | Turn On Time | 10@1.8V@-40C to 85C ns |
| Power - Input | Single | Current - Output | 10µA |
| Current - Supply | 0.001 mA | Delay Time - OFF | 10.5@1.8V@-40C to 85C ns |
| Number of Inputs | 2 | Voltage - Supply | 1.65 V |
| Number of Outputs | 2 | Power Supply Type | Single |
| Number of Channels | 2 | Current Rating (Max) | Catalog |
| Schmitt Trigger Input | No | Voltage Supply Source | Single Supply |
| Switch Function/Rating | SPST | Input Logic Level - High | :- |
| On-State Resistance (Max) | 30@1.65V Ohm | Voltage - Supply Span (Typ) | Not Required V |
| Switch Time (Ton, Toff) (Max) | 10.5 ns | Max Propagation Delay @ V, Max CL | 2@1.8V@-40C to 85C|1.2@2.5V@-40C to 85C|0.8@3.3V@-40C to 85C|0.6@5V@-40C to 85C ns |
| Multiplexer/Demultiplexer Circuit | Dual SPST | ||
Mechanical
| Width | 2.4(Max) | Weight | 0.000339 oz |
| Packaging | Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8VSSOP | Package Cooled | VSSOP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 2.1(Max) |
| Package Quantity | VSSOP | Number of Positions | 8 |
| Shell Size - Insert | 0.8(Max) | Supplier Device Package | US8 |
Product Info
| Type | Analog Switch | Series | SN74LVC2G66 |
| Function | Switch | Polarity | Non-Inverting |
| Software | SCES325K | Configuration | Dual SPST |
| Number of Switches | 2 | RF Family/Standard | LVC |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | + 85 C |
