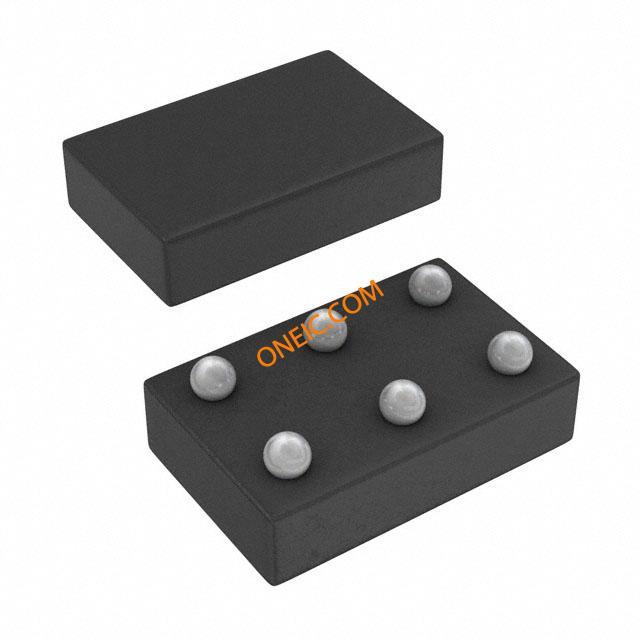

点击放大查看
SN74LVC2G06YEAR
| Manufacturer | |
| Description | Buffers & Line Drivers Dual w/ Open-Drain IC INVERTER DUAL 1INPUT 6DSBGA |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-13734-2 | Product Category | Buffers & Line Drivers |
| Standard Package | 3,000 | Factory Pack Quantity | 1 |
Compliance
| RoHS | No | ||
Electrical
| Logic Type | LVC | Output Type | Open Drain |
| Number of Inputs | 2 | Voltage - Supply | 5.5 V |
| Number of Outputs | 2 | Number of Channels | 2 |
| Delay Time - Propagation | 3.4 ns at 3.3 V, 2.9 ns at 5 V | Logic Voltage - VIL, VIH | 1.7 V ~ 2 V |
| Current - Quiescent (Max) | 10µA | Current - Output High, Low | 32 mA |
| Max Propagation Delay @ V, Max CL | 2.9ns @ 5V, 50pF | ||
Mechanical
| Packaging | Reel | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | DSBGA-6 |
| Supplier Device Package | 6-DSBGA, 6-WCSP (1.4x0.9) | ||
Product Info
| Features | Open Drain | Polarity | Inverting |
| Number of Circuits | 2 | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 85 C |
