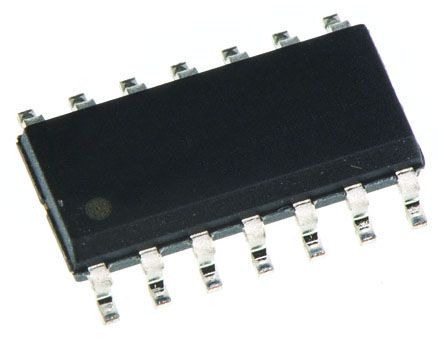

点击放大查看
SN74LVC125ADR
| Manufacturer | |
| Description | Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SOIC T/R IC BUS BUFF TRI-ST QD 14SOICN Buffers & Line Drivers Tri-State Quad Bus Quadruple Bus Buffer Gate With 3-State Outputs Logic IC SO-14, SN74LVC125AD, Texas Instruments LVC 四总线缓冲器, 5.3 ns @ 2.7 V, 24mA, 1.65 → 3.6 V, 14针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-8453-2 | Product Category | Buffers & Line Drivers |
| Standard Package | Cut Tape, Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Voltage | 1.8 2.5 2.7 3.3 | Input Type | TTL/CMOS |
| Logic Type | LVC | Output Type | 3-State |
| Input Signal | Single-Ended | Number of I/O | 5 V |
| Number of Bits | 4 | Voltage Rating | 1.65 |
| Current - Supply | 10 uA | Number of Inputs | 4 |
| Voltage - Supply | 1.65 V ~ 3.6 V | Number of Outputs | 4 |
| Number of Channels | 4 | Number of Elements | 4 |
| Current Rating (Max) | Catalog | Frequency - Output 1 | 100 |
| Schmitt Trigger Input | No | Voltage - Supply (Min) | 1.65 V |
| Power - Average Forward | 500 mW | Power Dissipation (Max) | 500 mW |
| Propagation Delay (Max) | 50pF | Current - Quiescent (Iq) | 1 uA |
| Delay Time - Propagation | 5.3 ns at 2.7 V, 4.6 ns at 3.3 V | Current - Quiescent (Max) | 0.04 |
| Current - Output 1 (Range) | 24mA | Current - Output 2 (Range) | -24mA |
| Current - Output High, Low | 24mA, 24mA | Number of Bits per Element | 1 |
| Current - Output Source/Sink | -24/24 | Max Propagation Delay @ V, Max CL | 5.3@2.7V|4.6@3.3V ns |
| Propagation Delay tpLH / tpHL (Max) | 11.8 5.8 5.3 4.6 | ||
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 8.65mm | Weight | 0.004318 oz |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 14 | Package / Case | 14SOIC |
| Package Cooled | SOIC | Length - Overall | 8.75(Max) |
| Package Quantity | SOIC | Size / Dimension | 8.65 x 3.91 x 1.58mm |
| Number of Positions | 14 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 14-SOIC | Pulse Width Distortion (Max) | 5.3 ns @ 2.7 V |
Product Info
| Series | SN74LVC125A | Process | CMOS |
| Function | Buffer/Line Driver | Polarity | Non-Inverting |
| Software | SCAS290Q | Technology | CMOS |
| Manufacturer | Texas Instruments | Pattern Number | Y |
| Functional Diagram | alt_scas290q.gif | RF Family/Standard | LVC |
| Utilized IC / Part | View | Printed Circuit Board | 14 |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40°C ~ 125°C |
