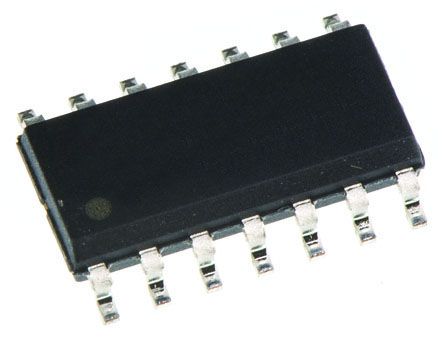

SN74LV4066AD
| Manufacturer | |
| Description | QUADRUPLE BILATERAL ANALOG SWITCH Analog Switch Quad SPST 14-Pin SOIC Tube Analog Switch ICs Quad Bilateral IC SWITCH QUAD 1X1 14SOIC LOGIC, ANLG SWITCH QUAD BILAT, 14SOIC Quadruple Bilateral Analog Switch Texas Instruments 模拟单刀单掷开关, 四单刀单掷, 3 V 5 V电源电压, 14针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Analog Switch ICs | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | Standard Package Name | SOIC |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Circuit | 4 x SPST - NO | Channels | 4 |
| Crosstalk | Yes | Logic Type | :744066 |
| Input Signal | Yes | Turn On Time | 25@2.5V ns |
| Power - Input | Single | Current - Output | 20µA |
| Current - Supply | 0.02 mA | Delay Time - OFF | 25@2.5V ns |
| Number of Inputs | 4 | Voltage - Supply | 2 V |
| Number of Outputs | 4 | Power Supply Type | Single |
| Number of Channels | 4 | Current Rating (Max) | Catalog |
| Schmitt Trigger Input | No | Voltage Supply Source | Single Supply |
| Switch Function/Rating | SPST | On-State Resistance (Max) | 180@2.3V Ohm |
| Voltage - Supply Span (Typ) | Not Required V | Switch Time (Ton, Toff) (Max) | 16 ns |
| Max Propagation Delay @ V, Max CL | 12@2.5V|9@3.3V|6@5V ns | Multiplexer/Demultiplexer Circuit | Quad SPST |
Mechanical
| Width | 4(Max) | Weight | 0.004564 oz |
| Bandwidth | :50MHz | Packaging | Tube |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :14 | Package / Case | 14SOIC |
| Package Cooled | SOIC | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 8.75(Max) | Package Quantity | SOIC |
| Number of Positions | 14 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 14-SOIC | ||
Product Info
| Type | Analog Switch | Series | SN74LV4066A |
| Features | Low Power Low Crosstalk | Function | Switch |
| Polarity | Non-Inverting | Software | SCLS427I |
| Switch Type | :SPST | Configuration | Quad SPST |
| Number of Switches | 4 | RF Family/Standard | LV-A |
| Utilized IC / Part | View | Printed Circuit Board | 14 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | + 85 C |
