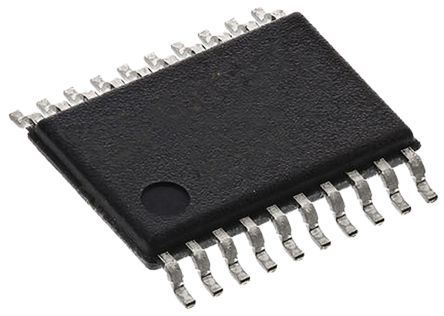

SN74HC688PWT
| Manufacturer | |
| Description | Identity Comparator 8-Bit 20-Pin TSSOP T/R IC COMPARATOR IDENTITY 20TSSOP Comparator ICs 8-Bit Identity Comparators IC, COMPARATOR, SMD, TSSOP20, 5V IC, 8-BIT COMPARATOR 8-Bit Identity/Magnitude Comparators (P=Q) with Enable , 8-Bit 反相 相等比较器, 2 → 6 V, 20针 TSSOP封装 Logic Comparators 8-Bit Identity Comparators |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Digital Comparators | Other Names | 296-31824-1 |
| Product Category | Comparator ICs | Standard Package | Cut Tape |
| Factory Pack Quantity | 250 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Output | Active Low | Voltage | 6 |
| Logic Type | HC | Number of Bits | 8 |
| Voltage Rating | 2 | Comparator Type | Identity |
| Output Function | A=B | Voltage - Supply | 5 V |
| Number of Channels | :8 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 70 | Voltage - Supply (Min) | 2 V |
| Propagation Delay (Max) | 265 | Current - Quiescent (Iq) | 8µA |
| Delay Time - Propagation | 210 ns, 42 ns, 36 ns | Current - Quiescent (Max) | 0.08 |
| Current - Output High, Low | 5.2 mA | Current - Output Source/Sink | 5.2/-5.2 |
| Max Propagation Delay @ V, Max CL | 210@2V|42@4.5V|36@6V ns | Propagation Delay tpLH / tpHL (Max) | 45 |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 4.5(Max) | Weight | 0.002716 oz |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :20 |
| Package / Case | 20TSSOP | Package Cooled | TSSOP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 6.6(Max) |
| Package Quantity | TSSOP | Number of Positions | 20 |
| Shell Size - Insert | 1.05(Max) | ||
Product Info
| Type | Identity Comparator | Series | SN74HC688 |
| Process | CMOS | Function | :8bit Identity/Magnitude Comparators (P=Q) With Enable |
| Polarity | Inverting | Software | SCLS010D |
| Base Unit | :74 | Technology | CMOS |
| RF Family/Standard | HC | Utilized IC / Part | View |
| Printed Circuit Board | 20 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
PDF Document
PDF Document
