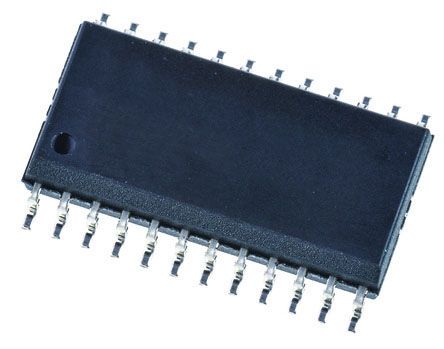

SN74BCT8244ADW
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Specialty Function Logic | Standard Package | Rail / Tube |
| Factory Pack Quantity | 25 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Voltage | 5 | Logic Type | BCT |
| Output Type | 3-State | Input Signal | Single-Ended |
| Number of Bits | 8 | Voltage Rating | 4.5 |
| Number of Inputs | 8 | Voltage - Supply | 4.5 V ~ 5.5 V |
| Number of Outputs | 8 | Number of Channels | 8 |
| Number of Elements | 2 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 70 | Voltage - Supply (Min) | 4.5 V |
| Propagation Delay (Max) | 29 | Current - Quiescent (Iq) | 35000 uA |
| Delay Time - Propagation | 29 ns | Current - Quiescent (Max) | 52 |
| Current - Output High, Low | -15 mA | Current - Output Source/Sink | 64/-15 |
| Max Propagation Delay @ V, Max CL | 7@5V ns | Propagation Delay tpLH / tpHL (Max) | 8.5 |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 7.6(Max) | Weight | 0.022025 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :24 |
| Package / Case | 24SOIC | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 15.6(Max) |
| Package Quantity | SOIC | Number of Positions | 24 |
| Shell Size - Insert | 2.35(Max) | Supplier Device Package | 24-SOIC |
Product Info
| Series | SN74BCT8244A | Process | BiCMOS |
| Function | Scan Buffer/Line Driver | Polarity | Non-Inverting |
| Software | SCBS042E | Technology | BiCMOS |
| RF Family/Standard | BCT | Utilized IC / Part | View |
| Printed Circuit Board | 24 | ||
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | 0°C ~ 70°C |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- SN54/74BCT8244A
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
