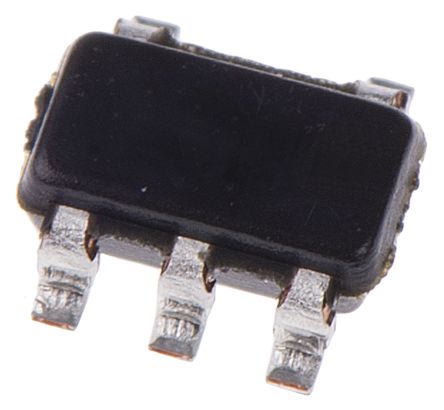

SN74AHC1G14DBVR
| Manufacturer | |
| Description | Inverter Schmitt Trigger 1-Element CMOS 5-Pin SOT-23 T/R IC SCHMITT-TRG INV GATE SOT23-5 Inverters Single Schmitt-Trgr 74AHC SINGLE GATE, SMD, 74AHC1G14 Single Schmitt-Trigger Inverter Gate Logic IC SOT-23-5, SN74AHC1G14, SN74AHC1G14DBVR, Texas Instruments 反相器, 8mA, 5针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-1092-2 | Product Category | Inverters |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | :74AHC1G14 | Rad Hardened | No |
Electrical
| Voltage | 3.3 5 | Input Type | Schmitt Trigger |
| Logic Type | AHC | Output Type | Schmitt Trigger |
| Number of Bits | 1 | Voltage Rating | 2.5|3.3|5 V |
| Current - Output | :8mA | Number of Inputs | 1 |
| Voltage - Supply | 2 V ~ 5.5 V | Propagation Delay | 50 pF |
| Number of Elements | 1 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 75 | Schmitt Trigger Input | Yes |
| Voltage - Supply (Min) | 2 V | Propagation Delay (Max) | 18.5 |
| Current - Quiescent (Iq) | 1 uA | Delay Time - Propagation | 18.5 ns |
| Logic Voltage - VIL, VIH | 2.2 V ~ 3.85 V | Current - Quiescent (Max) | 1µA |
| Current - Output High, Low | 8 mA | Current - Output Source/Sink | 50/-50 |
| Max Propagation Delay @ V, Max CL | 16.3@3.3V|10.6@5V ns | Propagation Delay tpLH / tpHL (Max) | 16.3 10.6 |
Mechanical
| Width | 1.75(Max) | Weight | 0.000557 oz |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :5 |
| Package / Case | 5SOT-23 | Package Cooled | SOT-23 |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 3.05(Max) |
| Package Quantity | SOT-23 | Number of Positions | 5 |
| Shell Size - Insert | 1.3(Max) | Supplier Device Package | SOT-23-5 |
Product Info
| Series | SN74AHC1G14 | DELETED | Compliant |
| Process | CMOS | Features | Schmitt Trigger |
| Function | Inverter Schmitt Trigger | Software | SCLS321P |
| Base Unit | :74 | Technology | CMOS |
| Number of Circuits | 1 | RF Family/Standard | AHC |
| Utilized IC / Part | View | Printed Circuit Board | 5 |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 85 °C |
