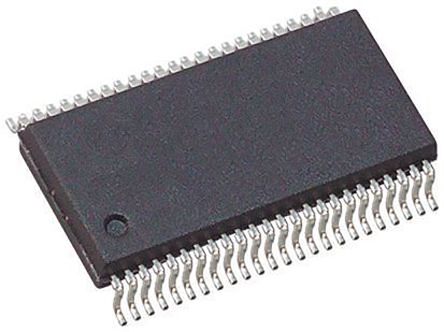

SN74ABT16245ADL
| Manufacturer | |
| Description | Bus XCVR Dual 16-CH 3-ST 48-Pin SSOP Tube IC BUS TRANSCVR 16BIT 48SSOP Bus Transceivers Tri-State 16-Bit Bus 16BIT BUS TRANSCEIVER, 74ABT16245 16-Bit Bus Transceivers With 3-State Outputs Logic IC SSOP-48, SN74ABT16245, SN74ABT16245ADL, Texas Instruments , 双 16位 非反相 总线收发器, 48针 SSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Bus Transceivers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 25 | Standard Package Name | SSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :74ABT16245 | Rad Hardened | No |
Electrical
| Voltage | 5 | Data Rate | Bi-Directional |
| Input Type | TTL | Logic Type | ABT |
| Output Type | 3-State | Output Signal | TTL |
| Number of Bits | 16 | Voltage Rating | 5 V |
| Current - Output | :64mA | Voltage - Output | TTL |
| Voltage - Supply | 4.5 V ~ 5.5 V | Number of Channels | 16 |
| Number of Elements | 2 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 150 | Schmitt Trigger Input | No |
| Voltage - Supply (Min) | 4.5 V | Input Logic Level - Low | TTL |
| Propagation Delay (Max) | 6.4 | Delay Time - Propagation | 4.2 ns |
| Input Logic Level - High | TTL | Current - Quiescent (Max) | 0.032 |
| Current - Output High, Low | 32mA, 64mA | Number of Bits per Element | 8 |
| Current - Output Source/Sink | -32/64 | Propagation Delay tpLH / tpHL (Max) | 4.6 |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 7.59(Max) | Weight | 0.021175 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :48 | Package / Case | 48SSOP |
| Package Cooled | SSOP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 16(Max) | Package Quantity | SSOP |
| Number of Positions | 48 | Shell Size - Insert | 2.79(Max) - 0.2(Min) |
| Supplier Device Package | 48-SSOP | ||
Product Info
| Series | SN74ABT16245A | Process | BiCMOS |
| Function | Bus Transceiver | Polarity | Non-Inverting |
| Software | SCBS300G | Base Unit | :74 |
| Technology | BiCMOS | Number of Circuits | 2 |
| RF Family/Standard | ABT | Utilized IC / Part | View |
| Printed Circuit Board | 48 | Number of Inputs and Type | 1 Low/High |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
