SN65HVD75D
| Manufacturer | |
| Description | Circuit Protection Misc Circuit Protection Device IC TXRX RS485 3.3V LP 8SOIC SN65HVD75D, Line Transceiver, RS-485, RS-422 1 1 20Mbit/s Differential, 3.3V, 8-Pin SOIC RS-485 Interface IC 3.3V-Supply RS-485 with IEC ESD Prot IC, TRANS, RS485, 3.3V, W/ESD. 8SOIC 3.3V, Half-Duplex RS-485, 12kV IEC ESD, 20Mbps data rate Logic IC SO-8, SN65HVD75, SN65HVD75D, Texas Instruments Texas Instruments 20MBps 线路收发器, RS-485接口, 差分接收器信号, 3.3 V, 8针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-30401-5 | Product Category | RS-485 Interface IC |
| Standard Package | 75 | Factory Pack Quantity | 75 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
| Fault Protection | -13 to 16.5 | ||
Electrical
| Data Rate | 20Mbps | Interface | RS-422, RS-485 |
| Baud Rates | 20 | Fail Short | Idle Open Short |
| Input Signal | Differential | Signal Types | Differential |
| Isolated Power | No | Current - Output | 750 uA |
| Number of Inputs | 1 | Voltage - Supply | 3 V ~ 3.6 V |
| Number of Outputs | 1 | Power Supply Type | Single |
| Receiver Hysteresis | 80mV | Current - Input Bias | 0.95 |
| Current Rating (Max) | Catalog | Number of Receivers per Line | 1 (RS485) |
| Common Mode Transient Immunity (Min) | -7 to 12 | ||
Mechanical
| Width | 4mm | Height | 1.5mm |
| Length | 5mm | Weight | 0.0001 |
| Packaging | Tube | Case Color | :SOIC |
| Common Pin | 12 | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Package Cooled | SOIC | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 5(Max) | Package Quantity | SOIC |
| Size / Dimension | 5 x 4 x 1.5mm | Number of Positions | 8 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 8-SOIC |
Product Info
| Type | Transceiver | Duplex | Half |
| Series | SN65HVD75 | Function | Driver/Receiver |
| Protocol | RS485 | Shutdown | No |
| Software | SLLSE11D | Pattern Number | Y |
| Number of Nodes | 200 | Number of Drivers | 1 |
| Functional Diagram | fbd_sllse11d.gif | Utilized IC / Part | View |
| Number of Receivers | 1 (RS485) | Printed Circuit Board | 8 |
| Number of Drivers/Receivers | 1/1 | Number of Transmitters/Receivers | 1 (RS485) |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40°C ~ 125°C |
| Operating Temperature - Junction | 125C | ||
Similar Parts

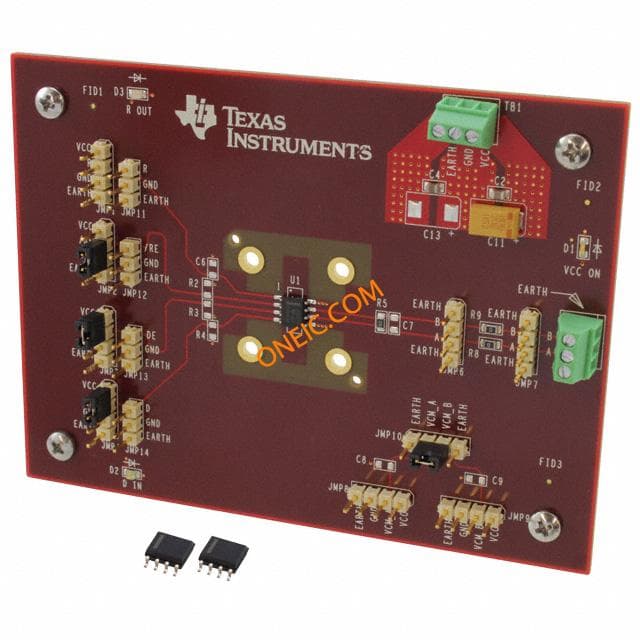

SN65HVD72EVM
