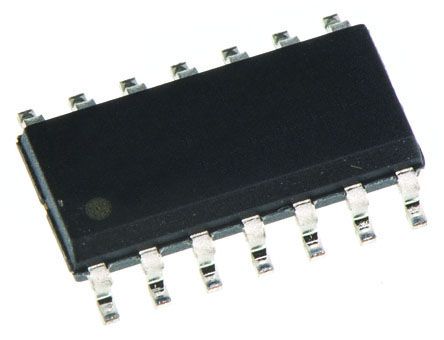

SN65HVD33D
| Manufacturer | |
| Description | Single Transmitter/Receiver RS-422/RS-485 14-Pin SOIC Tube IC RS485 DVR/RCVR 3.3V 14-SOIC RS-422/RS-485 Interface IC 3V Full-Dplx Driver and Receiver 3V Full-Duplex RS-485 Driver and Receiver with enables Logic IC SO-14, SN65HVD33, SN65HVD33D, Texas Instruments Texas Instruments 26MBps 线路收发器, RS-485接口, 差分接收器信号, 3.3 V, 14针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | RS-422/RS-485 Interface IC | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
| Fault Protection | -9 to 14 | ||
Electrical
| Data Rate | 26(Max) Mbps | Interface | EIA/TIA-422-B|EIA/TIA-485-A|ISO-8482|RS-422|V.11 |
| Baud Rates | 26 | Drive Type | 3-State |
| Fail Short | Idle Open Short | Input Signal | Differential |
| Signal Types | Differential | Output Signal | 差分 |
| Power - Input | Single | Isolated Power | No |
| Data Rate (Max) | Multidrop|Multipoint | Current - Output | 2.1 mA |
| Current - Supply | 2 mA | Number of Inputs | 1 |
| Voltage - Supply | 3.3 V | Number of Outputs | 1 |
| Power Supply Type | Single | Number of Channels | 1 Channel |
| Receiver Hysteresis | 50mV | Current - Input Bias | 2 |
| Current Rating (Max) | Catalog | Voltage - Supply Span (Typ) | Not Required V |
| Load Side Connections Per Pole | 64 | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 8.65mm | Weight | 0.004706 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 14 | Package / Case | 14SOIC |
| Package Cooled | SOIC | Length - Overall | 8.75(Max) |
| Package Quantity | SOIC | Size / Dimension | 8.65 x 3.91 x 1.58mm |
| Number of Positions | 14 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 14-SOIC | ||
Product Info
| Type | Transceiver | Duplex | Full |
| Series | SN65HVD33 | DELETED | Compliant |
| Function | Line Transmitter/Receiver | Protocol | RS422, RS485 |
| Software | SLLS665J | Technology | HVD |
| Manufacturer | Texas Instruments | Communications | RS-422|RS-485 |
| Number of Nodes | 64 | Number of Drivers | 1 Driver |
| Functional Diagram | alt_slls665j.gif | Utilized IC / Part | View |
| Number of Receivers | 1 | Printed Circuit Board | 14 |
| Number of Transmitters | 1 | Number of Drivers/Receivers | 1/1 |
| Number of Transmitters/Receivers | 1 | ||
