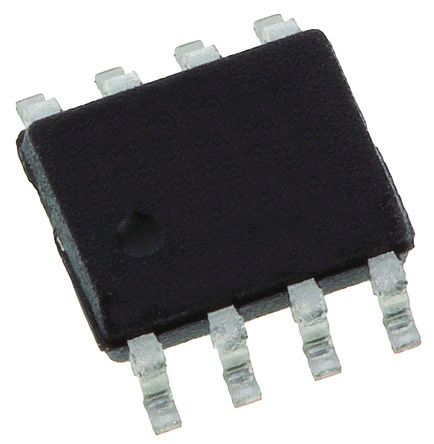

SN65HVD232QD
| Manufacturer | |
| Description | CAN 1Mbps 3.3V Automotive 8-Pin SOIC CAN Interface IC 3.3-V CAN Trnscvr -40 to 125C IC TXRX 3.3V CAN 8-SOIC CAN TRANSCEIVER, 1MBPS, 1DR/1RX, SOIC-8 Automotive Catalog 3.3-V CAN Transceiver Texas Instruments 1MBps CAN 收发器, 支持ISO 11898标准, 8针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-12705-5 | Product Category | CAN Interface IC |
| Standard Package | Rail / Tube | Factory Pack Quantity | 75 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Standards | ISO 11898 |
| Tariff No | 85423990 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Data Rate | 1 Mbps | Interface | :CAN |
| Isolated Power | No | Voltage Rating | 3 |
| Data Rate (Max) | 1 Mbps | Current - Output | 17 mA |
| Current - Supply | 17 | Voltage - Supply | 3 V |
| Receiver Hysteresis | 100mV | Current Rating (Max) | Catalog |
| Link Range, Low Power | No | Voltage - Supply (Min) | 3 V |
| Voltage - Breakdown (Min) | -4 to 16 | Common Mode Transient Immunity (Min) | Automotive |
Mechanical
| Width | 4(Max) | Weight | 0.000082 |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8SOIC |
| Package Cooled | SOIC | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 5(Max) | Package Quantity | SOIC |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Type | Transceiver | Duplex | Half |
| Series | SN65HVD232Q | DELETED | Compliant |
| Features | High Speed | Protocol | CAN |
| Software | SGLS398A | Number of Layers | :1 |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
| Number of Drivers/Receivers | 1/1 | Number of Transmitters/Receivers | 1 |
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | + 125 C |
| Operating Temperature - Junction | 125C | ||
