REG103GA-2.5
| Manufacturer | |
| Description | LDO Regulator Pos 2.5V 0.5A 6-Pin(5+Tab) SOT-223 Tube IC REG LDO 2.5V 0.5A SOT223-6 LDO Voltage Regulators DMOS 500mA LDO Reg Single Output LDO, 500mA, Fixed(2.5V), Low Noise, Fast Transient Response |
| Category |
Business
| Other Names | REG103GA25 | Product Category | LDO Voltage Regulators |
| Standard Package | Rail / Tube | Factory Pack Quantity | 78 |
Compliance
| RoHS | Compliant | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Noise | 33 | Output | 1 |
| Accuracy | ±2 % | Card Speed | Current Limit|Thermal Shutdown Pr... |
| Output Type | Fixed | Regulator Type | Linear |
| Voltage Rating | 2.1 V | Current - Output | 0.5 A |
| Current - Supply | 1 mA | Voltage - Output | 2.5 |
| Voltage - Supply | 0.115@500mA V | Number of Outputs | 1 |
| Voltage Reference | 1.295(Typ) V | Regulator Topology | Positive Fixed |
| Current - Input Bias | 500 uA | Current Rating (Max) | Catalog |
| Number of Regulators | 1 | Voltage - Input (Min) | 2.5V |
| Current - Output (Max) | 0.5 | Output Voltage Accuracy | �2 % |
| Current - Quiescent (Iq) | 0.5 | DC Voltage - Input (Min) | 2.1 V |
| Current - Quiescent (Max) | 550mA | Voltage Regulation - Load | 2 % |
| Current - Input Bias (Max) | 0.5 mA | Number of Outputs and Type | 1 |
| Common Mode Transient Immunity (Min) | Military | ||
Mechanical
| Width | 3.55(Max) | Height | 1.6 mm |
| Length | 6.5 mm | Weight | 0.004265 oz |
| Packaging | Tube | Tab Width | Tab |
| Mounting Type | Surface Mount | Conductor Type | Gull-wing |
| Mounting Style | SMD/SMT | Number of Pins | 6 |
| Package / Case | 6SOT-223 | Package Cooled | SOT-223 |
| Length - Overall | 6.55(Max) | Package Quantity | 78 | TUBE |
| Packages Included | SOT-223 | Number of Positions | 5 +Tab |
| Shell Size - Insert | 1.65(Max) | Panel Cutout Dimensions | 0.115@500mA |
| Supplier Device Package | SOT-223-6 | ||
Product Info
| Type | LDO | Series | REG103-25 |
| DELETED | Compliant | Polarity | Positive |
| Software | SBVS010D | Topology | LDO |
| Manufacturer | Texas Instruments | Outputs and Type | Fixed Output |
| Utilized IC / Part | View | Output Configuration | 2.5 |
| Printed Circuit Board | 5 | Assembly Configuration | Surface Mount |
Environmental
| Operating Temperature | -55 to 125 °C | ||
Similar Parts
TPS76901EVM-127
texas instruments
Development Tools, Evaluation Module For TPS76901 Power Management IC Development Tools 100mA output Pow supply EVAL MOD FOR TPS76901 LDO LINEAR REGULATOR EVM
TPS79328EVM
texas instruments
Evaluation Module For TPS79328 Power Management IC Development Tools TPS79328 Eval Mod EVAL MOD FOR TPS79328
TPS76918EVM-127
texas instruments
Development Tools, Evaluation Module For TPS76918 Power Management IC Development Tools 100mA output Pow supply EVAL MOD FOR TPS76918
TPS79301EVM
texas instruments
Evaluation Module For TPS79301 Power Management IC Development Tools TPS79301 Eval Mod EVAL MOD FOR TPS79301
TPS76933EVM-127
texas instruments
Development Tools, Evaluation Module For TPS76933 Power Management IC Development Tools 100mA output Pow supply EVAL MOD FOR TPS76933
DEM-SOT223LDO
texas instruments

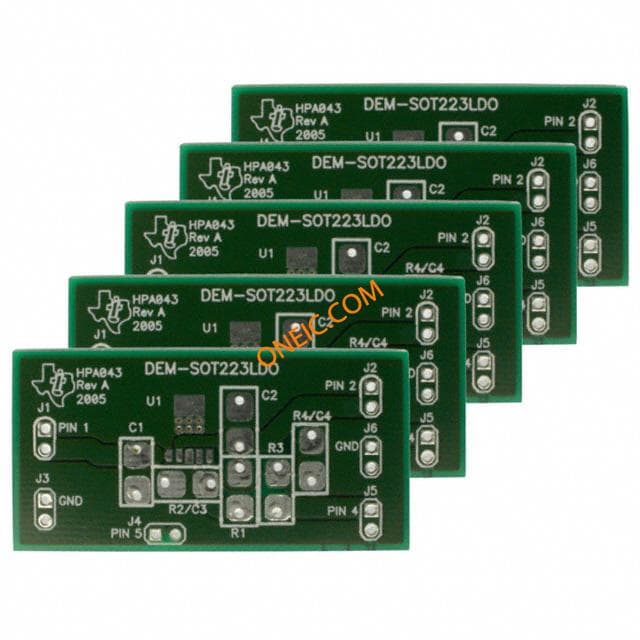

Demonstration Module Helps Designers Evaluate The Operation And Performance Of LowDropout Regulators Power Management IC Development Tools Compat w/ Most Pos Output LDO DEMO MODULE FOR SOT-223 LDO'S EVAL BOARD, REG102 100mA LDO REGULATOR
