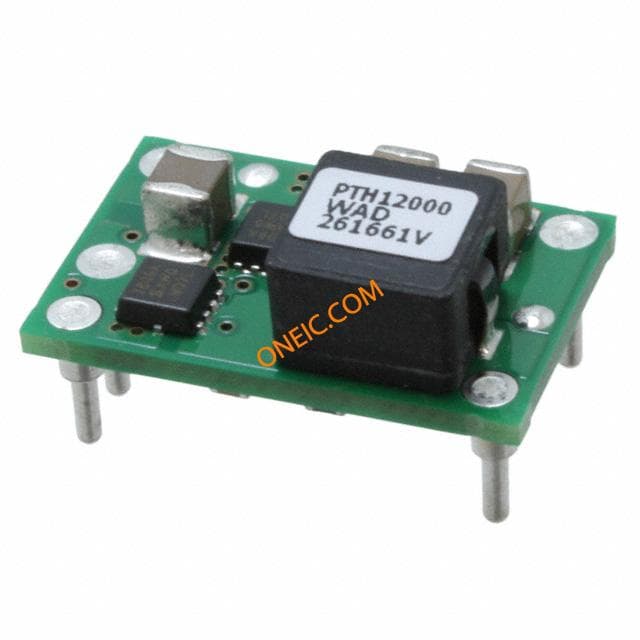

PTH12000WAH
| Manufacturer | |
| Description | Module DC-DC 1-OUT 1.2V to 5.5V 6A 5-Pin DIP Module MODULE PIP 1.2-5.5V 6A HORZ T/H PTH12000WAH, DC-DC Power Supply Module 12V Input,, 5-Pin, DIP Module DC/DC Converters 1.2 to 5.5V 6A 12V Input WideAdj Module IC, DC/DC 12VIN 6A ADJ O/P, 12000 1.2 to 5.5 V 6-A, 12-V Input Non-Isolated Wide-Adjust Module 直流-直流电源模块, 12 V输入, 5针 DIP 模块封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Non-Isolated / POL | Product Category | DC/DC Converters |
| Standard Package | Trays | Factory Pack Quantity | 56 |
| Standard Package Name | DIP Module | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | :12000 | Rad Hardened | No |
| Approval Agency | :- | ||
Electrical
| Output | 1 | Accuracy | :2% |
| Frequency | :350kHz | Isolation | Non-Isolated |
| Efficiency | 92% | Power - Max | 33W |
| Converter Type | :Non Isolated POL | Regulator Type | :DC / DC Converter |
| Voltage Rating | 1.2 to 5.5 V | Delay Time - ON | Fixed |
| Current - Output | 6 A | Voltage - Supply | :12V |
| Number of Outputs | 1 | Power Supply Type | :DC/DC converter |
| Power (Watts) - Max | 33W | Voltage - Input (Min) | 1.2 ~ 5.5 V |
| Voltage - Output (Max) | :5.5V | DC Voltage - Input (Max) | :13.2V |
| Current - Output / Channel | 6 A | Voltage - Output (Min/Fixed) | :1.2V |
| Voltage - Output 1 (Adj Range) | :5.5V | Common Mode Transient Immunity (Min) | Industrial |
| Voltage - Continuous Operating (Max) (MCOV) | :12V | Voltage - Output Difference (Typ) @ Distance | :1.2V |
Mechanical
| Depth | 12.57 mm | Width | 12.57mm |
| Height | 8.25mm | Length | 18.92mm |
| Weight | 0.002 | Packaging | Tray |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :5 |
| Package / Case | 5DIP Module | Package Cooled | DIP Module |
| Length - Overall | 18.92 mm | Package Quantity | DIP Module |
| Size / Dimension | 0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm) | Number of Positions | 5 |
| Shell Size - Insert | 8.25 | ||
Product Info
| Type | Step Down | Series | PTH12000W |
| Features | Enable Tracking | Software | SLTS202E |
| Base Unit | :12000 | Printed Circuit Board | 5 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
