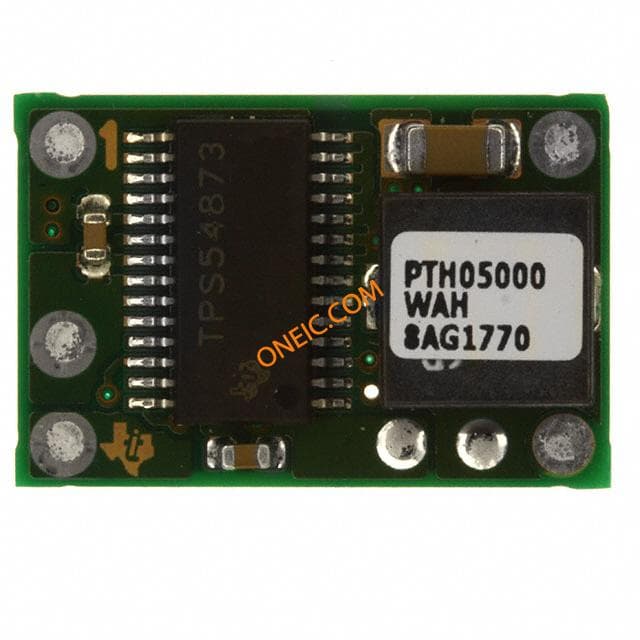

PTH05000WAH
| Manufacturer | |
| Description | Module DC-DC 1-OUT 0.9V to 3.6V 6A 5-Pin DIP Module MODULE PIP 5VIN 6A HORZ T/H PTH05000WAH, DC-DC Power Supply Module, 5-Pin, DIP Module DC/DC Converters 6A 5VInput Wide-Out Adj Plug-in Pwr Mod IC, DC/DC 5VIN 6A ADJ O/P, 5000 6 A, 5-V Input Wide-Output Adjust Plug-in Power Module 直流-直流电源模块, 5针 DIP 模块封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Non-Isolated / POL | Product Category | DC/DC Converters |
| Standard Package | Bulk, Rail / Tube | Factory Pack Quantity | 56 |
| Standard Package Name | DIP Module | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | :05000 | Rad Hardened | No |
Electrical
| Output | 1 | Accuracy | :2% |
| Frequency | :700kHz | Isolation | Non-Isolated |
| Efficiency | 92% | Power - Max | 21W |
| Regulator Type | :DC / DC Converter | Voltage Rating | 0.9 to 3.6 V |
| Delay Time - ON | Fixed | Current - Output | 6 A |
| Voltage - Supply | :4.5V | Number of Outputs | 1 |
| Power Supply Type | :DC/DC converter | Power (Watts) - Max | 21.6W |
| Voltage - Input (Min) | 0.9 ~ 3.6 V | Voltage - Output (Max) | :3.6V |
| Current - Output / Channel | 6 A | Voltage - Output (Min/Fixed) | :0.9V |
| Common Mode Transient Immunity (Min) | Industrial | Voltage - Continuous Operating (Max) (MCOV) | :5V |
| Voltage - Output Difference (Typ) @ Distance | :0.9V | ||
Mechanical
| Depth | 12.57 mm | Width | 12.57mm |
| Height | 8.25mm | Length | 18.92mm |
| Weight | 0.002 | Packaging | Tray |
| Lead Style | Through Hole | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :5 | Package / Case | 5DIP Module |
| Package Cooled | DIP Module | Material Finish | :- |
| Length - Overall | 18.92 mm | Package Quantity | DIP Module |
| Size / Dimension | 0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm) | Number of Positions | 5 |
| Shell Size - Insert | 8.25 | ||
Product Info
| Type | Step Down | Series | PTH05000W |
| Features | Enable Tracking | Software | SLTS201C |
| Base Unit | :05000 | Printed Circuit Board | 5 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
PDF Document
Online Document
PDF Document
Online Document
Online Document
