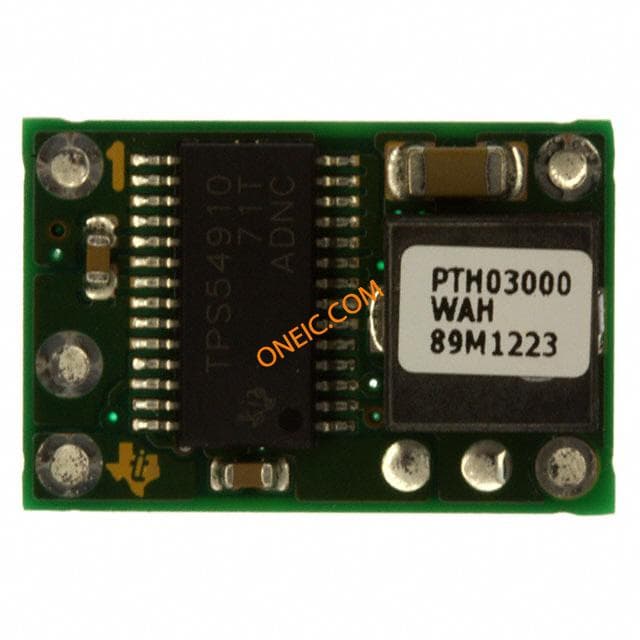

PTH03000WAH
| Manufacturer | |
| Description | Module DC-DC 1-OUT 0.9V to 2.5V 6A 5-Pin DIP Module MODULE PIP .9-2.5V 6A HORZ T/H PTH03000WAH, DC-DC Power Supply Module 3.3V Input,, 5-Pin, DIP Module DC/DC Converters 6A 3.3V-In Wide-Out Adj Plug-in Pwr Mdl 6 A, 3.3-V Input Wide-Output Adjust Plug-in Power Module |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Non-Isolated / POL | Product Category | DC/DC Converters |
| Standard Package | Bulk | Factory Pack Quantity | 56 |
| Standard Package Name | DIP Module | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Output | 1 | Isolation | Non-Isolated |
| Efficiency | 93% | Power - Max | 15W |
| Voltage Rating | 0.9 to 2.5 V | Delay Time - ON | Fixed |
| Current - Output | 6 A | Number of Outputs | 1 |
| Power (Watts) - Max | 15W | Voltage - Input (Min) | 0.9 ~ 2.5 V |
| Current - Output / Channel | 6 A | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Depth | 12.57 mm | Width | 12.57mm |
| Height | 8.25mm | Length | 18.92mm |
| Packaging | Tray | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | 5DIP Module | Package Cooled | DIP Module |
| Length - Overall | 18.92 mm | Package Quantity | DIP Module |
| Size / Dimension | 0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm) | Number of Positions | 5 |
| Shell Size - Insert | 8.25 | ||
Product Info
| Type | Step Down | Series | PTH03000W |
| Features | Enable Tracking | Software | SLTS200C |
| Pattern Number | Y | Printed Circuit Board | 5 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
