PCF8574PW
| Manufacturer | |
| Description | I/O Expander 20-Pin TSSOP Tube I2C GPIO Expander 6V 20-Pin TSSOP Tube IC I/O EXPANDER I2C 8B 20TSSOP PCF8574PW, I/O Expander, 20-Pin TSSOP Interface - I/O Expanders Remote 8-Bit I/O Expander for I2C-Bus I/O EXPANDER, 8BIT, 12C/SMBUS, TSSOP-20 Remote 8-Bit I/O Expander for I2C-Bus Communication IC TSSOP-20, PCF8574, PCF8574PW, Texas Instruments 输入/输出扩展器, 20针 TSSOP封装 |
| Category |
Business
| Product Category | Interface - I/O Expanders | Standard Package | Rail / Tube |
| Factory Pack Quantity | 70 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Reset | No | Frequency | :100kHz |
| Interface | Standard Mode | Logic Type | PCF8574 |
| Output Type | Open Drain | Number of I/O | 8 |
| Voltage Rating | 2.5 | Clock Frequency | 100kHz |
| Data Rate (Max) | 100 | Frequency - Max | 100 kHz |
| Interrupt Output | Yes | Voltage - Supply | 2.5 V ~ 6 V |
| Sampling Frequency | 0.1 | Current Rating (Max) | Catalog |
| Voltage - Supply (Min) | 6 | Current - Quiescent (Max) | 10 |
| Current - Output Source/Sink | 10mA, 25mA | ||
Mechanical
| Weight | 0.002716 oz | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 20 |
| Package / Case | 20TSSOP | Package Cooled | TSSOP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 6.6(Max) |
| Package Quantity | TSSOP | Number of Positions | 20 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 20-TSSOP |
Product Info
| Series | PCF8574 | DELETED | Compliant |
| Features | POR | Software | SCPS068H |
| Functional Diagram | alt_scps068h.gif | Utilized IC / Part | View |
| Number of Addresses | 8 | Other Specifications | :8bit |
| Printed Circuit Board | 20 | Number of Inputs and Type | 8 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts
SN74LVC1G125DBVR
texas instruments
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R IC BUS BUFF TRI-ST N-INV SOT23-5 SN74LVC1G125DBVR, Bus Buffer, LVC, 4 @ 5 Vns, 32mA 1.65 to 5.5V 5-Pin SOT-23 IC, BUFFER GATE, BUS, SMD, SOT-23-5 IC, BUFFER, NON-INVERT, SOT-23-5, FULL REEL Single Bus Buffer Gate With 3-State Outputs Logic IC SOT-23-5, SN74LVC1G125, SN74LVC1G125DBVR, Texas Instruments LVC 总线缓冲器, 4 ns @ 5 V, 32mA, 1.65 → 5.5 V, 5针 SOT-23封装 Buffers & Line Drivers SINGLE BUS BUFFER GATE
SN74LVC1G125DCKR
texas instruments
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SC-70 T/R IC BUS BUFF TRI-ST N-INV SC705 SN74LVC1G125DCKR, 1-Bit Buffer, Line Driver, LVC, 3-State Non-Inverting 1.65 to 5.5V 5-Pin SC-70 BUFFER GATE, SINGLE, SMD, SC-70-5 IC, BUFFER, NON-INVERT, SC-70-5, FULL REEL Single Bus Buffer Gate With 3-State Outputs Logic IC SC-70-5, SN74LVC1G125, SN74LVC1G125DCKR, Texas Instruments LVC, 1-Bit 三态 非反相 缓冲器，线路驱动器, 5针 SC-70封装 Buffers & Line Drivers SINGLE BUS BUFFER GATE
SN74LVC2G17DBVR
texas instruments
Schmitt Trigger Buffer 2-CH Non-Inverting CMOS 6-Pin SOT-23 T/R IC BUFF DL SCHMIT TRIG SOT23-6 Buffers & Line Drivers Dual Schmitt-Trgr IC, SCHMITT TRIGGER BUFF, 2BIT, 6SOT-23 IC, SCHMITT TRIGGER BUFFER, SOT-23-6, FULL REEL Dual Schmitt-Trigger Buffer Logic IC SOT-23-6, SN74LVC2G17, SN74LVC2G17DBVR, Texas Instruments

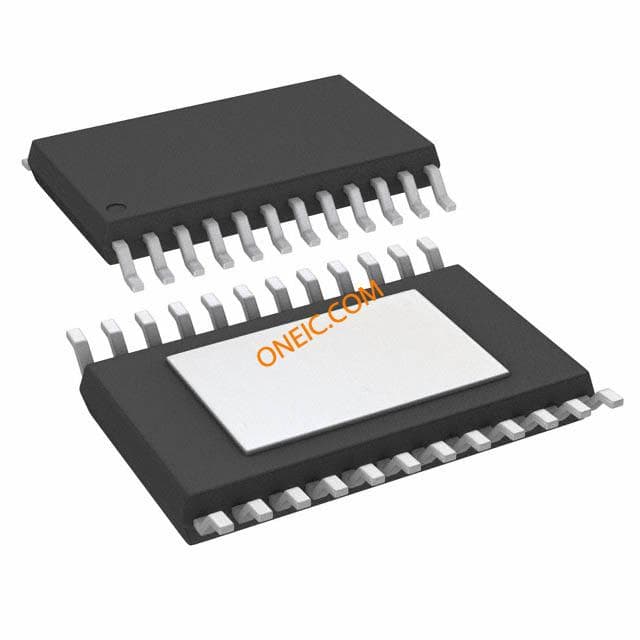

TPS70302PWP
